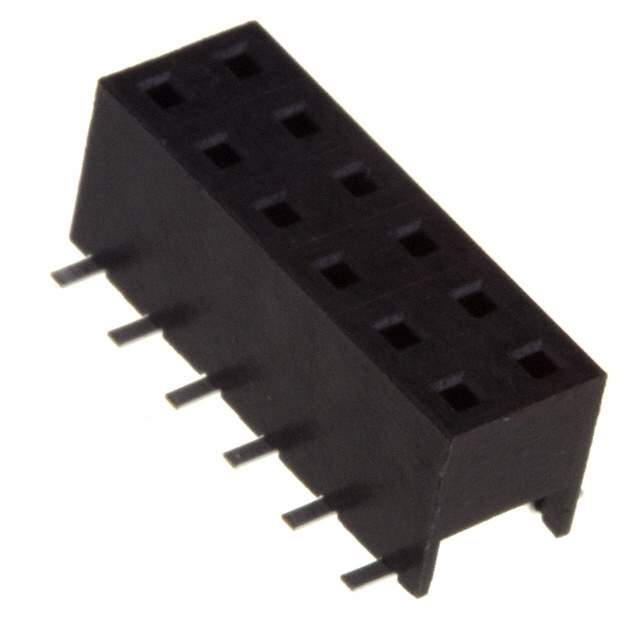

55510-112LF Real Image
Same model may have multiple batches, images only for reference.

55510-112LF

Part No 55510-112LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN RCPT 12POS 0.079 GOLD SMD / 12 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Amphenol ICC (FCI)
Series Minitek® 2.00mm
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 12
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.177" (4.50mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2A
Voltage Rating 200V
Applications General Purpose, Industrial, Medical
Insulation Material Plastic
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number 55510
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 55510112LF,609-2673
Standard Package 50
Win Source Part Number 1024294-55510-112LF
Ultra Librarian 3D Model Ultra Librarian 55510-112LF CAD Model

Description

The 1024294-55510-112LF is a high-quality rectangular connector that is designed for use in various electronic devices manufactured by Amphenol ICC (FCI).

  • Positions: 12
  • Insulation Material: Plastic
  • Voltage Rating: 200V
  • Mounting: SMD (SMT)
  • Contact Finish for Mating: Gold
  • Contact Finish Thickness for Mating: 30.0μin (0.76μm)
  • Contact Type: Female Socket
  • Termination: Solder
  • Temperature Range: -55°C to 125°C
  • Popularity: Medium
  • Supply and Demand: Balance
