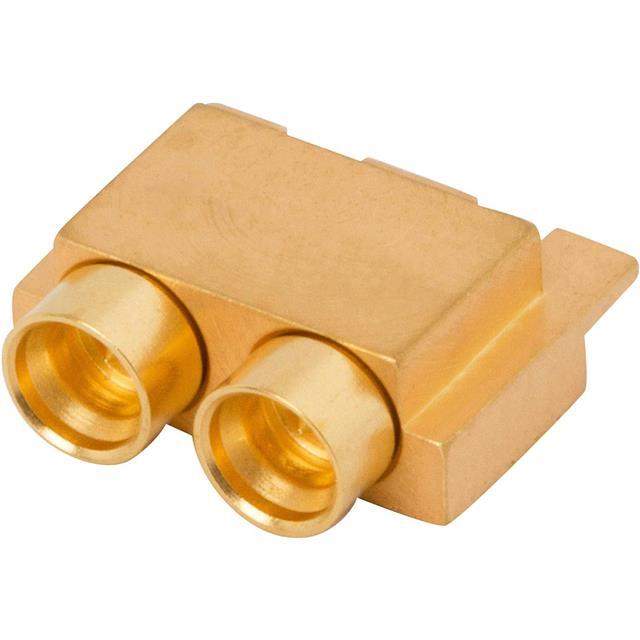

3811-60049 Real Image
Same model may have multiple batches, images only for reference.

3811-60049

Part No 3811-60049
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Description SMPS MALE EDGE LAUNCH CONNECTOR,  /  SMPS Connector Plug, Male Pin 50Ohm Board Edge, Cutout; Surface Mount Solder
Datasheet
3811-60049 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Amphenol SV Microwave
Series SMPS
Package Bulk
Connector Style SMPS
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Board Edge, Cutout; Surface Mount
Fastening Type Snap-On
Frequency - Max 65 GHz
Number of Ports 2
Features Full Detent
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Stainless Steel
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 100
Base Product Number 3811
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 25
Win Source Part Number 1041094-3811-60049
Ultra Librarian 3D Model Ultra Librarian 3811-60049 CAD Model

Description

The SMPS series coaxial connector is a plug male pin connector with a snap-on fastening type from Amphenol SV Microwave.

  • Connector Type: Plug Male Pin
  • Fastening Type: Snap-On
  • Ports: 2
  • Impedance: 50 Ohm
  • Material: Stainless Steel
  • Housing Color: Gold
  • Body Finish: Gold
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Dielectric Material: PTFE
  • Maximum Frequency: 65 GHz
  • Temperature Range: -65°C to 165°C
  • Mounting: Board Edge, Cutout, or Surface Mount
