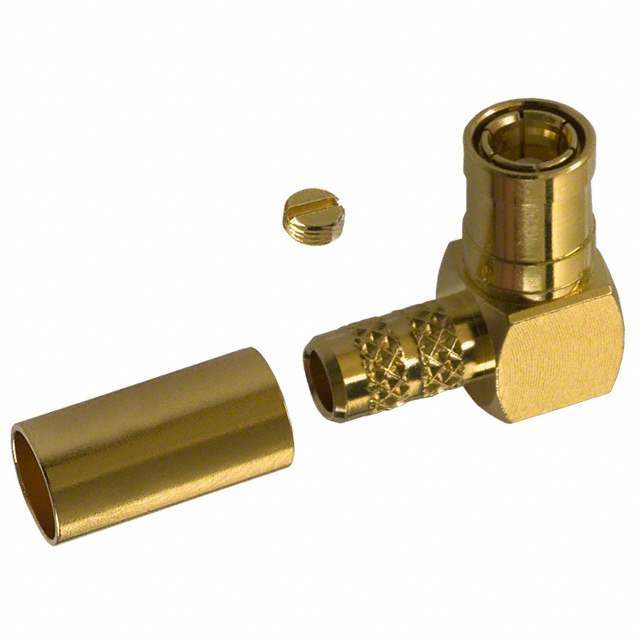

142206 Amphenol RF
Same model may have multiple batches, images only for reference.

142206

Part No 142206
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN SMB PLUG R/A 50 OHM SOLDER
Datasheet
142206 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308708-142206
Manufacturer Amphenol RF
Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connectors (RF)
Packaging Bag
Part Status Active
Connector Type Plug, Female Socket
Contact Termination Solder
Shield Termination Crimp
Impedance 50 Ohms
Mounting Type Free Hanging (In-Line), Right Angle
Housing Color Gold
Ultra Librarian 3D Model Ultra Librarian 142206 CAD Model

Description

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
