Same model may have multiple batches, images only for reference.

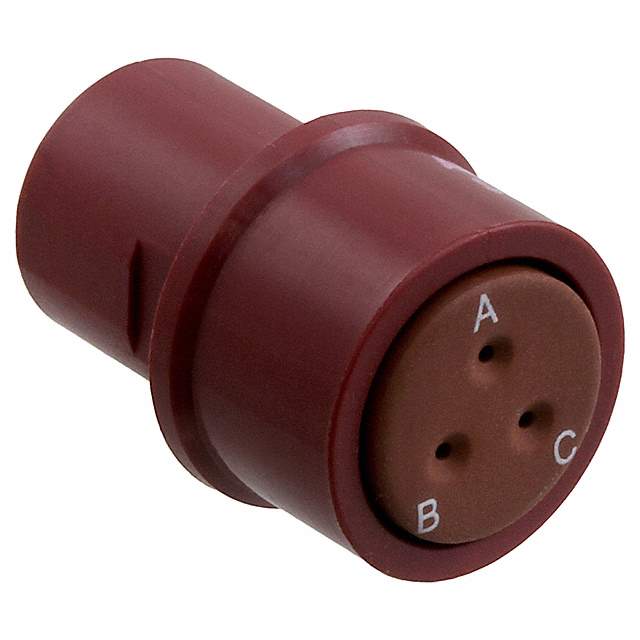

SJS820200 Real Image
Same model may have multiple batches, images only for reference.

SJS820200

Part No SJS820200
Manufacturer Amphenol PCD
Catalog Circular Connectors
Description CONN RCPT HSNG MALE 3POS INLINE  /  3 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr Amphenol PCD
Series Luminus
Package Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 3
Shell Size - Insert 8
Contact Type Crimp
Contact Size 20
Mounting Type Free Hanging (In-Line)
Fastening Type Detent Lock
Orientation A
Shell Material Polyamide (PA66), Nylon 6/6
Housing Color Red
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Shielding Unshielded
Note Contacts Not Included
Contact Shape Circular
Temperature Range - Operating -55°C ~ 95°C
Base Product Number SJS82
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Names APC1625
Standard Package 1
Win Source Part Number 1110480-SJS820200
Ultra Librarian 3D Model Ultra Librarian SJS820200 CAD Model

Description

The Amphenol PCD 1110480-SJS820200 is a Luminus series circular connector housing that is designed for male pins.

  • Series: Luminus
  • Connector Type: Circular Connector Housing
  • Gender: Male Pins
  • Number of Positions: 3
  • Contact Size: 20
  • ECCN: EAR99
  • HTSUS: 8538.90.6000
  • Features: Dust-tight and Waterproof
  • Ingress Protection: IP67
  • Fastening Type: Detent Lock
  • Housing Color: Red
  • Shell Material: Polyamide and Nylon 6/6
