Products specifications

Categories Connectors, Interconnects
Manufacturer Switchcraft Inc.
Series EN2
Packaging Bulk
Connector Type Receptacle, Male Pins
Number of Positions 3
Mounting Panel Mount, Bulkhead - Front Side Nut
Termination Crimp or Solder Cup
Fastening Type Bayonet Lock
Orientation Keyed
Ingress Protection IP68 - Dust Tight, Waterproof
Shell Material, Finish Thermoplastic
Contact Finish Gold
Voltage Rating DC 125VAC/DC
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 793925-EN2P3M20
Popularity Medium
Supply and Demand Status Balance
Family Name EN2
Introduction Date December 11, 2012
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian EN2P3M20 CAD Model

Description

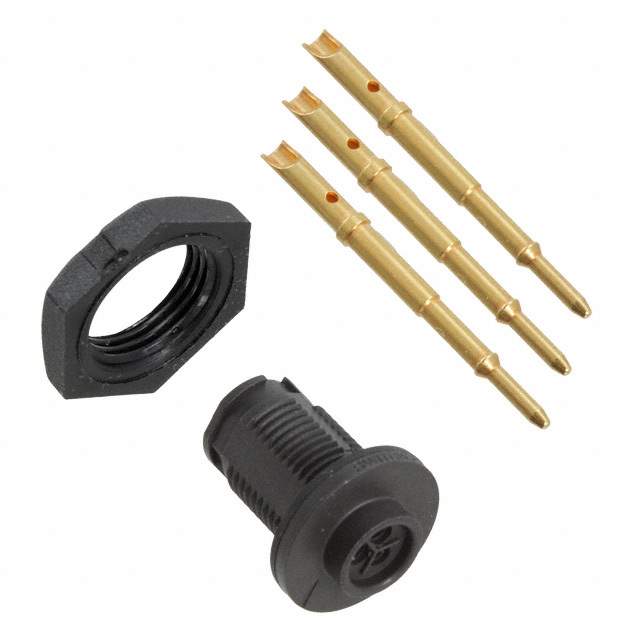

The Switchcraft Inc. EN2P3M20 is a medium popularity connector.

  • Fastening Type: Bayonet Lock
  • Number of Pins: 3 Male
  • Connector Type: Receptacle
  • Ingress Protection: IP68 (Dust Tight & Waterproof)
  • ECCN: EAR99
  • Origin: United States of America
  • Estimated EOL Date: 2029
