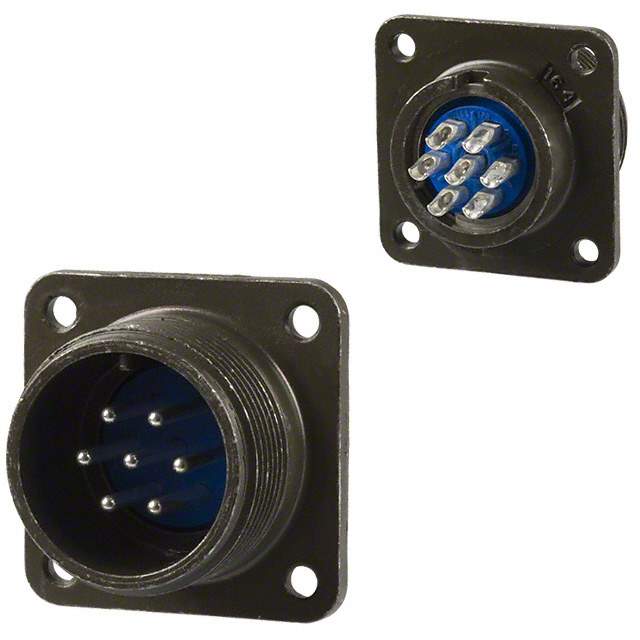

97-3102A-16S-1P(946) Real Image
Same model may have multiple batches, images only for reference.

97-3102A-16S-1P(946)

Part No 97-3102A-16S-1P(946)
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors
Description CONN RCPT MALE 7POS SOLDER CUP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol Industrial Operations
Packaging Bulk
Connector Type Receptacle, Male Pins
Number of Positions 7
Shell Size - Insert 16S-1
Mounting Style Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Threaded
Orientation N (Normal)
Shell Material Aluminum Alloy
Shell Finish Black Zinc Alloy
Contact Finish - Mating Silver
Color Black
Shielding Unshielded
Temperature Range - Operating -55°C ~ 125°C
Contact Material Copper Alloy
Insert Material Diallyl Phthalate (DAP)
Applications Automotive, Industrial
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812301-97-3102A-16S-1P(946)
Ultra Librarian 3D Model Ultra Librarian 97-3102A-16S-1P(946) CAD Model

Description

The Amphenol Industrial Operations 812301-97-3102A-16S-1P(946) is a panel mount receptacle connector with male pins from Amphenol Industrial Operations.

  • Positions: 7
  • Termination: Solder cup
  • Contact Material: Copper alloy
  • Fastening Type: Threaded
  • Shell Material: Aluminum alloy
  • Shell Finish: Black zinc alloy
  • Applications: Automotive, industrial
  • Temperature Range: -55°C to 125°C
  • Shielding: Unshielded
  • Flammability Rating: Not specified
  • Shell Size: 16S-1
  • Contact Finish: Silver
  • Mounting Feature: Flange
  • Voltage Rating: Unspecified
