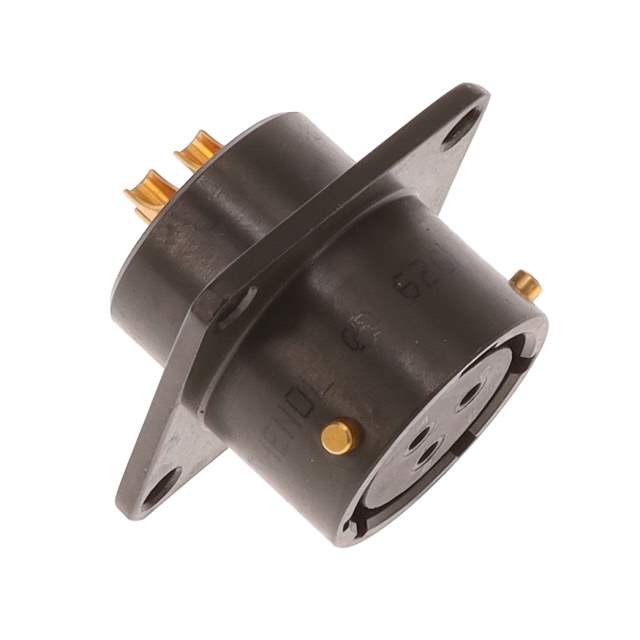

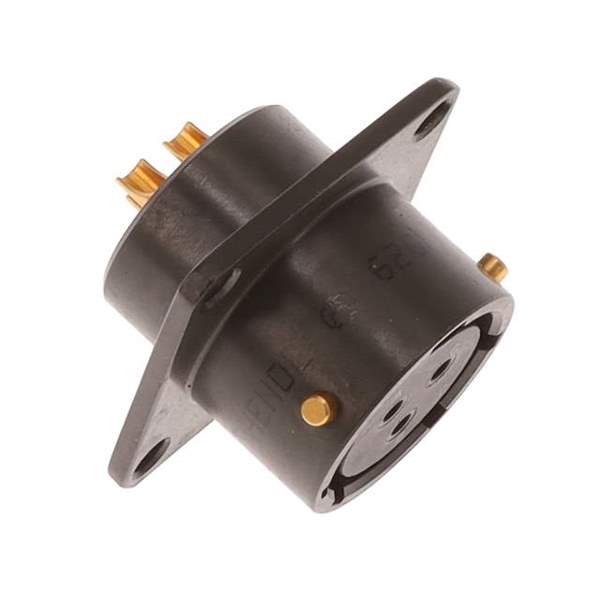

62GB-12E12-03SN Real Image
Same model may have multiple batches, images only for reference.

62GB-12E12-03SN

Part No 62GB-12E12-03SN
Manufacturer Amphenol PCD
Catalog Circular Connectors
Description 62GB 3C 3#16 SKT RECP / 3 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet
62GB-12E12-03SN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol PCD
Series 62GB
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 3
Shell Size - Insert 12-3
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum
Shell Finish Zinc Cobalt
Contact Finish - Mating Gold
Color Olive Drab
Ingress Protection Environment Sealed
Shielding Unshielded
Current Rating (Amps) 13A
Temperature Range - Operating -55°C ~ 125°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating 50.0µin (1.27µm)
Insert Material Polychloroprene
Applications Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Base Product Number 62GB12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names 62GB12E1203SN,623-62GB-12E12-03SN
Standard Package 1
Win Source Part Number 1047339-62GB-12E12-03SN
Ultra Librarian 3D Model Ultra Librarian 62GB-12E12-03SN CAD Model

Description

The Amphenol PCD 1047339-62GB-12E12-03SN is a 3-position circular connector designed for use in aerospace, communication systems, industrial, instrumentation, mass transit, and military applications.

  • Product Name: Amphenol PCD 1047339-62GB-12E12-03SN
  • Positions: 3
  • Application: aerospace, communication systems, industrial, instrumentation, mass transit, and military applications
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Fastening Type: Bayonet Lock
  • Shell Material: Aluminum
  • Shell Finish: Zinc Cobalt
  • Voltage Rating: Up to 300V
  • Current Rating: Up to 13A
  • Operating Temperature: -55°C to 125°C
  • Termination: Solder Cup
  • Package: Bulk
