Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - System On Chip (SoC)
Mfr AMD Xilinx
Series Zynq® UltraScale+™ MPSoC CG
Package Tray
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™
RAM Size 256KB
Peripherals DMA, WDT
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 533MHz, 1.3GHz
Primary Attributes Zynq®UltraScale+™ FPGA, 599K+ Logic Cells
Temperature Range - Operating -40°C ~ 100°C (TJ)

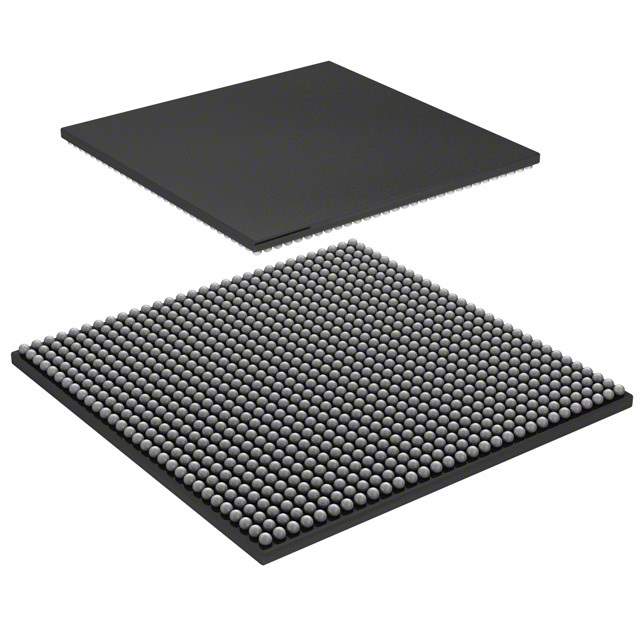

Package / Case 900-BBGA, FCBGA
Supplier Device Package 900-FCBGA (31x31)
Number of I/O 204
Base Product Number XCZU9
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN 5A002A4 XIL
HTSUS 8542.31.0001
Other Names 122-2032
Standard Package 1
Win Source Part Number 1003130-XCZU9CG-2FFVC900I
Ultra Librarian 3D Model Ultra Librarian XCZU9CG-2FFVC900I CAD Model

Description

The XCZU9CG-2FFVC900I is a Zynq UltraScale+ MPSoC CG series integrated circuit from Xilinx.

  • Manufacturer: Xilinx
  • Series: Zynq UltraScale+ MPSoC CG
  • Device: XCZU9CG-2FFVC900I
  • Processors: Dual ARM Cortex-A53 MPCore with CoreSight, Dual ARM Cortex-R5 with CoreSight
  • Processor Speeds: 533MHz, 1.3GHz
  • Logic Cells: 599K+
  • Applications: MCU and FPGA
  • Temperature Range: -40°C to 100°C
  • Package: 900-BBGA, FCBGA
  • Connectivity: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
  • Peripherals: DMA, WDT
  • RAM: 256KB
  • Flash Size: None
  • REACH: Unaffected
  • ECCN: 5A002A4 XIL
