Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 15 Weeks
Features 80 Position Plug Connector Board to Board Through Hole, Right Angle Solder
Manufacturer TE Connectivity
Series CHAMP .050 I
Package Box
Mounting Through Hole, Right Angle
Family Name 1734099
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 1734099-8-ND, A97695, -1734099-8-SI
Quantity per package 21
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905502-1734099-8
Ultra Librarian 3D Model Ultra Librarian 1734099-8 CAD Model

Description

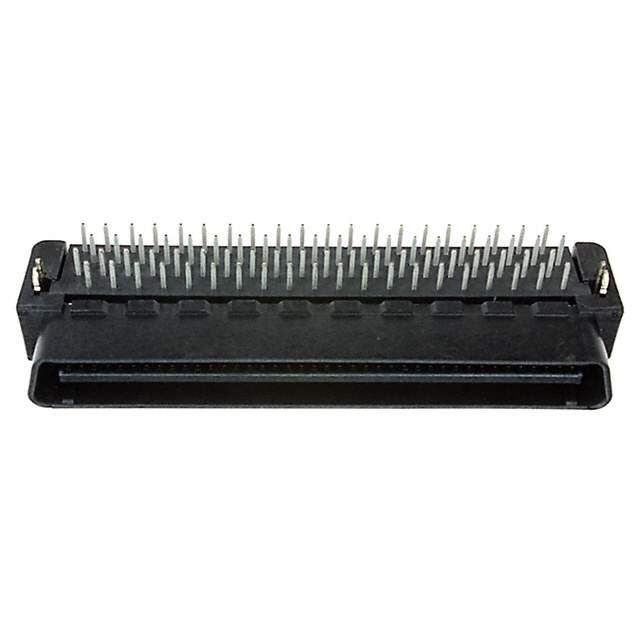

The TE Connectivity 905502-1734099-8 is an 80 position plug connector that is designed to be used on a board to board through-hole connection.

  • Type: Right-Angle Solder
  • Series: CHAMP .050 I series
  • Supply and Demand Status: Balanced
  • Component: Connector product
  • Estimated Production Lead Time: 15 weeks
  • MSL Level: 1 (unlimited)
