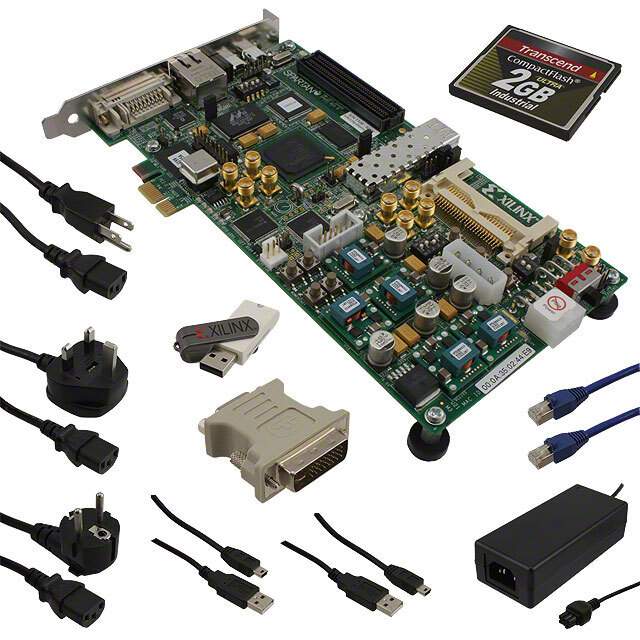

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Embedded - Complex Logic (FPGA, CPLD)
Mfr AMD
Series Spartan®-6 LXT
Package Box
Product Status Obsolete
Type FPGA
For Use With/Related Products XC6SLX45T
Platform Spartan-6 LXT FPGA Embedded PCIe Card
Contents Board(s) , Cable(s) , Power Supply
Interconnect System FMC
Suggested Programming Environment ISE
Base Product Number XC6SLX45
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A992A
HTSUS 8471.50.0150
Win Source Part Number 1350404-DK-S6-EMBD-G
Ultra Librarian 3D Model Ultra Librarian DK-S6-EMBD-G CAD Model

Description

The DK-S6-EMBD-G is a Spartan®-6 LXT FPGA development board from AMD.

  • FPGA Family: Spartan®-6 LXT
  • FPGA: XC6SLX45T
  • Package: Box
  • Includes: Board(s), cable(s), and power supply
  • Status: Obsolete
  • Suggested Programming Environment: ISE
  • Interconnect System: FMC
  • ECCN: 3A992A

You May Also Be Interested in

EK-Z7-ZC706-G Real Image
EK-Z7-ZC706-G
Amd
EVALUATION KIT ZYNQ-7000 ZC706 / Zynq-7000 AP SoC ZC706 PCIe Card XC7Z045 Zynq®-7000 FPGA + MCU/MPU SoC Evaluation Board
Need more? Email Us
ECAD model for EK-Z7-ZC706-G
DK-K7-CONN-G Real Image
DK-K7-CONN-G
Amd
KINTEX-7 FPGA KC705 CON EVAL KIT / Kintex-7 FPGA Connectivity PCIe Card XC7K325T Kintex®-7 FPGA Evaluation Board
Need more? Email Us
ECAD model for DK-K7-CONN-G

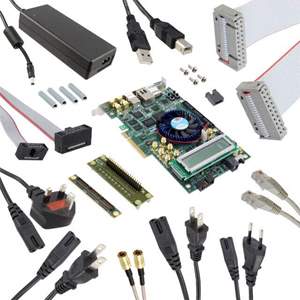

DK-START-5AGXB3N Real Image
