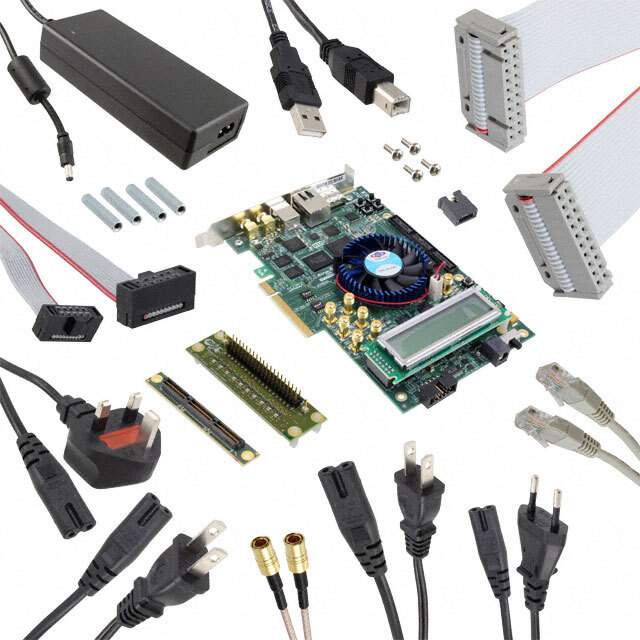

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Embedded - Complex Logic (FPGA, CPLD)
Mfr Intel
Series Arria® V GX
Package Box
Product Status Obsolete
Type FPGA
For Use With/Related Products 5AGXFB3
Platform Arria V GX FPGA Starter
Contents Board(s) , Cable(s)
Interconnect System HSMC
Suggested Programming Environment Quartus II
Base Product Number 5AGXFB3
Standard Package 1
RoHS Status Not applicable
MSL Level 1 (Unlimited)
ECCN 3A001A7A
HTSUS 8473.30.1180
California Prop 65 Warning Information
Win Source Part Number 1339555-DK-START-5AGXB3N
Ultra Librarian 3D Model Ultra Librarian DK-START-5AGXB3N CAD Model

Description

The Intel DK-START-5AGXB3N is an evaluation board that belongs to the Arria V GX series.

  • Manufacturer: Intel
  • Part Number: DK-START-5AGXB3N
  • Series: Arria V GX
  • Type: FPGA
  • Application: Complex Logic (FPGA, CPLD)
  • Package: Box
  • Standard Package Quantity: 1
  • Designed For: 5AGXFB3
  • Supplied With: Board(s) and Cable(s)
  • Interconnect System: HSMC
  • Programming: Quartus II
