The TDA1516BQ is a high-fidelity audio power amplifier integrated circuit (IC) designed and manufactured by NXP Semiconductors. This robust and reliable IC is specifically engineered to deliver excellent sound quality with a minimal number of external components, making it an ideal solution for automotive audio applications as well as home stereo systems.

Key Features

• Power Output: The TDA1516BQ offers a substantial power output of 24 Watts per channel into a 4 Ohm load, with a power supply range of 6 to 18 volts, which is sufficient for a wide range of audio applications.
• High Efficiency: It operates with a high level of efficiency, which reduces the heat generated and allows for the use of smaller heat sinks, making it suitable for compact audio system designs.
• Flexibility: This IC can be used in various configurations, including bridge-tied load (BTL) to drive a mono speaker with increased power.
• Protection Features: The TDA1516BQ is equipped with several protection features, including short-circuit protection, thermal protection, and a mute function to prevent pops and clicks during power cycling.

Applications

The versatility of the TDA1516BQ makes it an excellent choice for a variety of audio applications. It is commonly used in:

• Car audio systems
• Hi-Fi home audio systems
• Television sound systems
• Powered speaker units
• Public address systems

Technical Specifications

• Supply Voltage: 6 to 18 V
• Load Impedance: Suitable for 4 Ohm loads
• Output Power: Up to 24 W per channel
• Operating Temperature: -40°C to +150°C

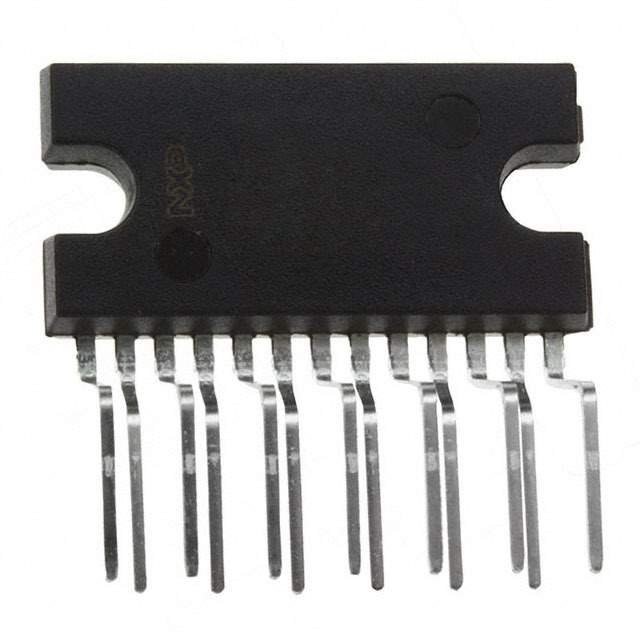

• Package: 13-lead SIL-bent-SIP (Single In-line Package)

The TDA1516BQ integrates seamlessly into audio systems requiring high power output with superior sound quality and reliability. Its robust design and comprehensive protection features ensure long-lasting performance, making it a preferred choice for audio enthusiasts and professionals alike.
