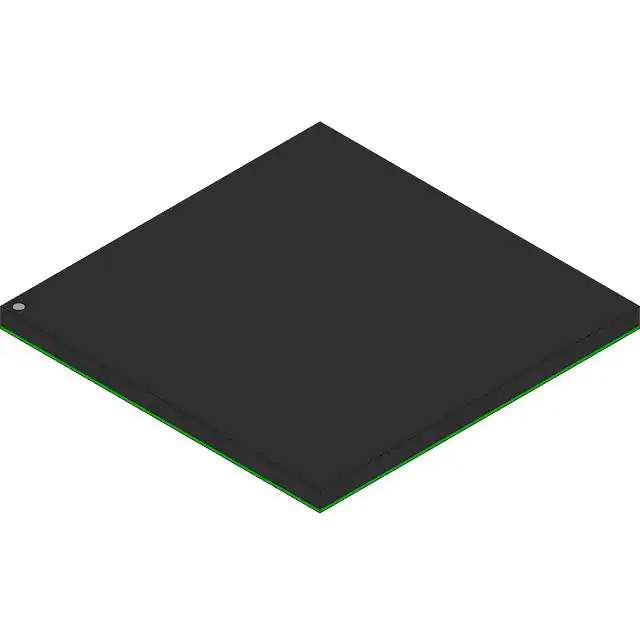

EPXA1F672C1 Real Image
Same model may have multiple batches, images only for reference.

EPXA1F672C1

Part No EPXA1F672C1
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array) with Microcontrollers
Description LOADABLE PLD, PBGA672
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array) with Microcontrollers
Mfr Altera
Series Excalibur™
Package Tray
Product Status Obsolete
Core Type 32-Bit ARM9
Speed 266 MHz
Interface EBI/EMI, UART/USART
Program SRAM Bytes 32K
Data SRAM Bytes 16K
FPGA Core Cells 4160
FPGA Gates 100K
Voltage - Supply 1.8V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C
Package / Case 672-BBGA, FCBGA
Supplier Device Package 672-FBGA (27x27)
Standard Package 10 pcs
ECCN 3A001A7A
HTSUS 8542.39.0001
Win Source Part Number 918491-EPXA1F672C1
Ultra Librarian 3D Model Ultra Librarian EPXA1F672C1 CAD Model

Description

The Excalibur™ 918491-EPXA1F672C1 is an integrated circuit (IC) that falls under the category of Embedded Field Programmable Gate Array (FPGA) with Microcontrollers.

  • Core Type: 32-Bit ARM9
  • Speed: 266 MHz
  • Interface: EBI/EMI and UART/USART
  • Program SRAM: 32K bytes
  • Data SRAM: 16K bytes
  • FPGA Core Cells: 4160
  • FPGA Gates: 100K
  • Voltage Supply: 1.8V
  • Mounting Type: Surface Mount
  • Temperature Range: 0°C to 85°C
  • Part Status: Obsolete
