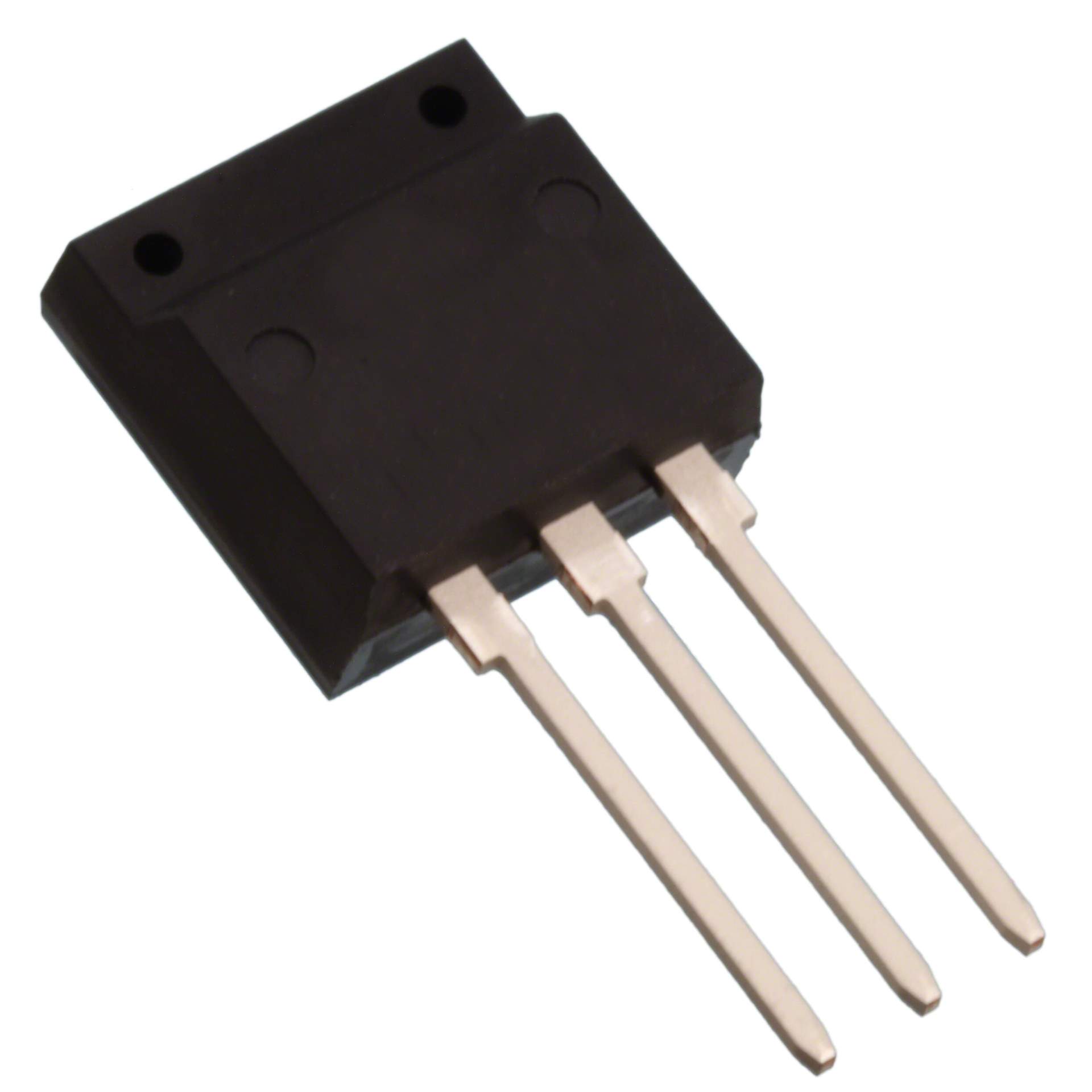

Same model may have multiple batches, images only for reference.

AOWF4N60

Name: AOWF4N60
Brand: Alpha & Omega Semiconductor Inc.
SKU: 562392
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AOWF4N60
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	600V,4A N-Channel MOSFET
Datasheet	AOWF4N60 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Tube
Channel Type Type	N
Technology	MOSFET
Drain Source Voltage	600V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Vgs(th) (Maximum) @ Id	4.5V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs	14.5nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds	640pF @ 25V
Vgs (Maximum)	±30V
Power Dissipation (Maximum)	25W (Tc)
Rds On (Maximum) @ Id, Vgs	2.3 Ohm @ 2A, 10V
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting Style	Through Hole
Package	TO-262-3 Long Leads, I2Pak, TO-262AA
Win Source Part Number	1145080-AOWF4N60
Manufacturer Homepage	www.aosmd.com
Family Name	AOWF4N60
Introduction Date	November 16, 2011
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2019
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian AOWF4N60 CAD Model

Alternative Products

Description

The Alpha & Omega Semiconductor AOWF4N60 is an N-channel MOSFET integrated circuit (IC) that is designed for use in various electronic applications.

Popularity: Medium
Supply and Demand: Balanced
Win Source Part Number: 1145080
Packaging: Tube
Drain-Source Voltage: 600V
Continuous Drain Current: 4A (Tc)
Rds On (Maximum): 2.3 Ohm @ 2A, 10V
Gate Charge (Qg) (Maximum) @ Vgs: 14.5nC @ 10V
