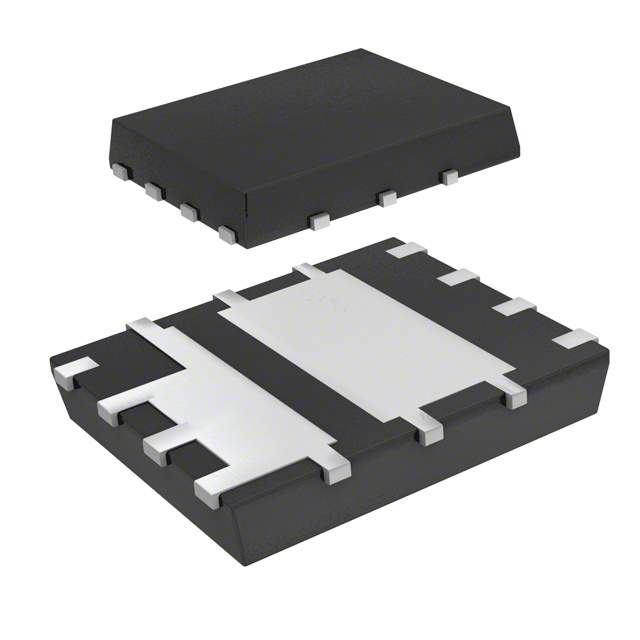

AON6934 Real Image
Same model may have multiple batches, images only for reference.

AON6934

Part No AON6934
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog FETs - Arrays
Description MOSFET 2N-CH 30V 22A/30A 8DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel
Transistor Polarity 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Vds - Drain-Source Breakdown Voltage 30V
Id - Continuous Drain Current 22A, 30A
Rds On (Maximum) at Id, Vgs 5.2mOhm at 20A, 10V
Gate Source Voltage(th) (Maximum) at Id 2.2V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 22nC at 10V
Input Capacitance (Ciss) (Maximum) at Vds 1037pF at 15V
Maximum Power 3.6W, 4.3W
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 8-PowerVDFN
Supplier Device Package 8-DFN (5x6)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 722181-AON6934
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON6934 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AON6934 is a 2 N-Channel (Half Bridge) MOSFET that is designed to operate in a temperature range of -55°C to 150°C.

  • Package: 8-DFN (5x6)
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 22A
  • Maximum Power: 3.6W
  • Gate-Source Voltage: 2.2V @ 250μA
  • Gate Charge: 22nC @ 10V
  • Input Capacitance: 1037pF @ 15V
  • Maximum Rds On: 5.2mOhm @ 20A, 10V
  • Suitable for: Use in discrete semiconductor products
