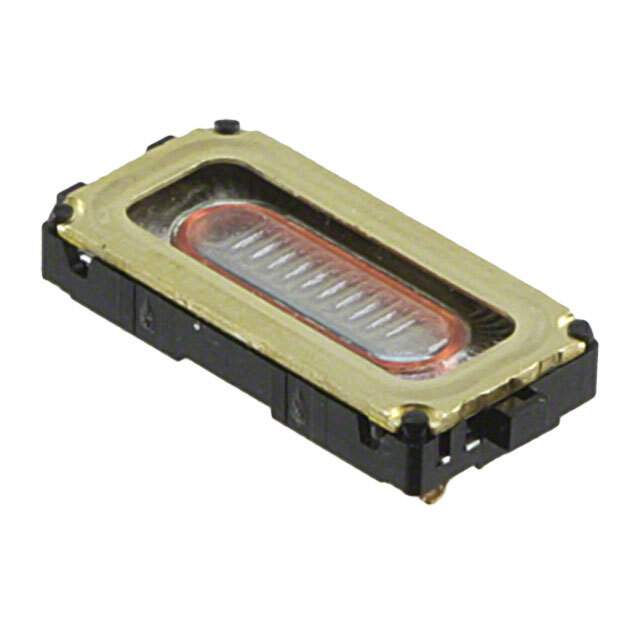

2403 260 00051 Real Image
Same model may have multiple batches, images only for reference.

2403 260 00051

Part No 2403 260 00051
Manufacturer Knowles
Catalog Speakers
Description SPEAKER 32OHM 10MW TOP PORT 65DB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Knowles
Packaging Reel
Part Status Obsolete (End Of Life)
Technology Magnetic
Type Receiver
Frequency Range 160Hz ~ 10kHz
Frequency - Self Resonant 350Hz
Impedance 32 Ohms
Efficiency - dBA 65.00
Efficiency - Testing 1W/1M
Efficiency - Type Sensitivity
Power - Rated 10mW
Power - Max 75mW
Port Location Top
Shape Rectangular
Material - Cone Polyester
Material - Magnet Nd-Fe-B
Termination Spring Type
Dimension 0.472" L x 0.236" W (12.00mm x 6.00mm)
Height - Seated (Maximum) 0.083" (2.10mm)
Manufacturer Pack Quantity 1,700
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809598-2403 260 00051
Ultra Librarian 3D Model Ultra Librarian 2403 260 00051 CAD Model

Description

The Knowles receiver is a rectangular-shaped magnetic receiver with a frequency range of 160Hz to 10kHz and an impedance of 32 Ohms. The manufacturer is Knowles.

  • Shape: Rectangular
  • Frequency Range: 160Hz to 10kHz
  • Impedance: 32 Ohms
  • Power Rating: 10mW
  • Maximum Power: 75mW
  • Port Location: Top
  • Termination: Spring
  • Packaging: Reel
  • Cone Material: Polyester
  • Magnet Material: Nd-Fe-B
  • Height: 0.083" (2.10mm)
  • Dimension: 0.472" L x 0.236" W (12.00mm x 6.00mm)
  • Efficiency: 65.00 dBA
  • Testing: 1W/1M
  • Status: Obsolete (End Of Life)
  • Supply and Demand Status: Limited
