Same model may have multiple batches, images only for reference.

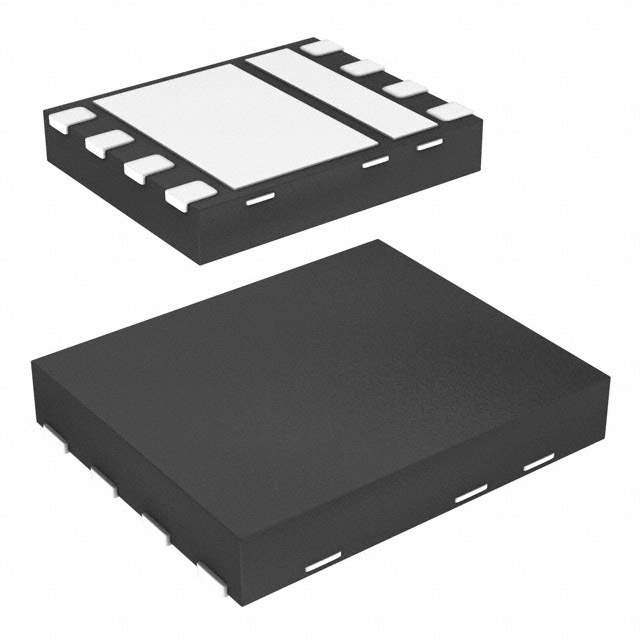

AON6918 Real Image
Same model may have multiple batches, images only for reference.

AON6918

Part No AON6918
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description 25V Dual Asymmetric N-Channel MOSFET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Part Status Obsolete(EOL)
FET Type 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain Source Voltage 25V
Current - Continuous Drain (Id) @ 25°C 15A, 26.5A
Rds On (Maximum) @ Id, Vgs 5.2 mOhm @ 20A, 10V
Vgs(th) (Maximum) @ Id 2.3V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 21nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 1560pF @ 15V
Power - Max 2W, 2.2W
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package 8-WDFN Exposed Pad
Manufacturer Package 8-DFN-EP (5x6)
Win Source Part Number 1144984-AON6918
Manufacturer Homepage www.aosmd.com
Family Name AON6918
Introduction Date August 16, 2011
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON6918 CAD Model

Description

The AON6918 is a powerful N-channel MOSFET manufactured by Alpha & Omega Semiconductor Inc.

  • Current Rating: 26.5A
  • On-Resistance: 0.0052 ohms
  • Part Status: Obsolete (EOL)
  • Popularity: Medium
