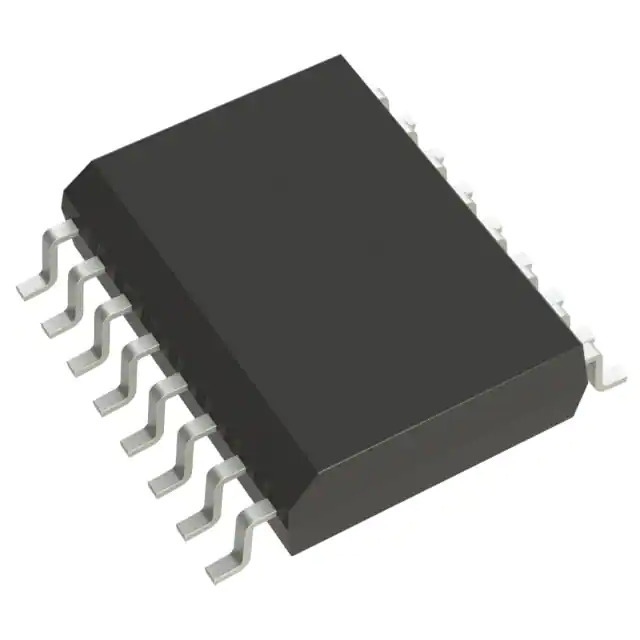

Same model may have multiple batches, images only for reference.
ACS37002LMABTR-050B5 Allegro MicroSystems, LLC
Same model may have multiple batches, images only for reference.

ACS37002LMABTR-050B5

Part No ACS37002LMABTR-050B5
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description 400 KHZ, HIGH ACCURACY CURRENT S / Current Sensor 50A 1 Channel Hall Effect Bidirectional 16-SOIC (0.295", 7.50mm Width)
Datasheet
ACS37002LMABTR-050B5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Allegro MicroSystems
Series ACS37002
Package Tape & Reel
Product Status Active
For Measuring AC/DC
Sensor Type Hall Effect
Current - Sensing 50A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 40mV/A
Frequency 400kHz
Linearity ±0.75%
Accuracy ±1.75%
Voltage - Supply 4.5V ~ 5.5V
Response Time 2.5µs
Current - Supply (Max) 18mA
Temperature Range - Operating -40°C ~ 150°C (TA)
Polarization Bidirectional
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Base Product Number ACS370
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1354886-ACS37002LMABTR-050B5
Ultra Librarian 3D Model Ultra Librarian ACS37002LMABTR-050B5 CAD Model

Description

The ACS37002LMABTR-050B5 is a current sensor manufactured by Allegro MicroSystems.

  • Series: ACS37002
  • Mounting Type: Surface Mount
  • Voltage Supply: 4.5V to 5.5V
  • Maximum Supply Current: 18mA
  • Sensitivity: 40mV/A
  • Current Measurement: AC/DC up to 50A
  • Technology: Hall Effect
  • Output: Ratiometric Voltage
  • Response Time: 2.5µs
  • Accuracy: ±1.75%
  • Category: Sensors and Transducers, Current Sensing
  • Temperature Range: -40°C to 150°C
  • Package: 16-SOIC
  • Status: Active
  • Packaging: Tape & Reel
  • REACH: Unaffected
