Same model may have multiple batches, images only for reference.

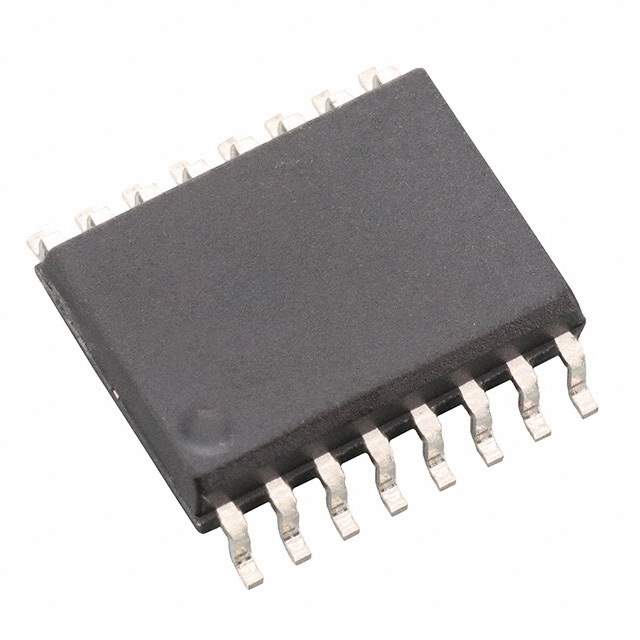

ACS724LMATR-65AB-T Real Image
Same model may have multiple batches, images only for reference.

ACS724LMATR-65AB-T

Part No ACS724LMATR-65AB-T
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description SENSOR CURRENT HALL 65A 16SOIC / Current Sensor 65A 1 Channel Hall Effect, Differential Bidirectional 16-SOIC (0.295", 7.50mm Width)
Datasheet
ACS724LMATR-65AB-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Allegro MicroSystems
Series Automotive, AEC-Q100
Package Tape & Reel
For Measuring AC/DC
Sensor Type Hall Effect, Differential
Current - Sensing 65A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 30.75mV/A
Frequency DC ~ 120kHz
Linearity ±1.5%
Accuracy ±1%
Voltage - Supply 4.5V ~ 5.5V
Response Time 4µs
Current - Supply (Max) 14mA
Temperature Range - Operating -40°C ~ 150°C (TA)
Polarization Bidirectional
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Base Product Number ACS724
Standard Package 1,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1349448-ACS724LMATR-65AB-T
Ultra Librarian 3D Model Ultra Librarian ACS724LMATR-65AB-T CAD Model

Description

The ACS724LMATR-65AB-T is a bidirectional current sensor from Allegro MicroSystems.

  • Manufacturer: Allegro MicroSystems
  • Sensing Current: 65A
  • Sensitivity: 30.75mV/A
  • Response Time: 4µs
  • Accuracy: ±1%
  • Linearity: ±1.5%
  • Operating Temperature: -40°C to 150°C
  • Voltage Supply: 4.5V to 5.5V
  • Supply Current (Max): 14mA
  • Package / Case: 16-SOIC
  • Package Width: 7.50mm
