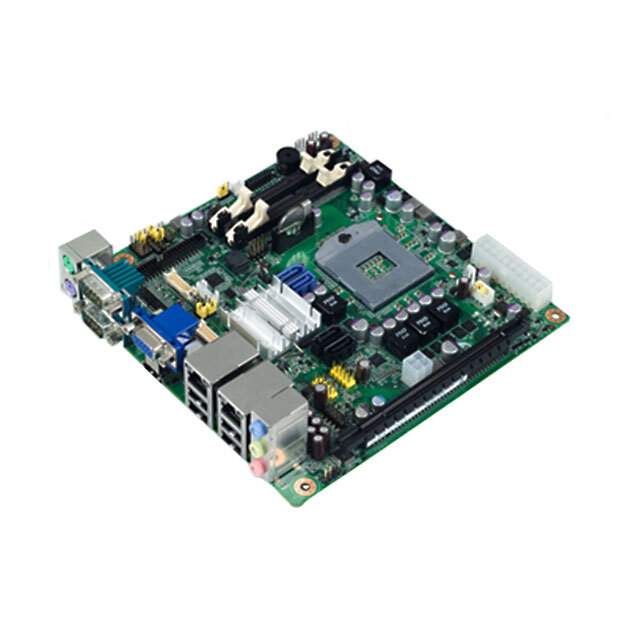

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Embedded Computers
Manufacturer Advantech Corp
Core Processor Intel Core i7/i5/i3/Celeron
Speed 1.6GHz ~ 2.5GHz
Number of Cores 2/4
Cooling Type Heat Sink
Parts Dimension 6.69" x 6.69" (170mm x 170mm)
Form Factor Mini-ITX (without Processor)
Expansion Site/Bus Mini-PCIe, PCIe
RAM Capacity/Installed 8GB/0GB
Storage Interface SATA 2.0 (2), SATA 3.0 (2)
Video Outputs CRT, DVI, HDMI, LVDS, VGA
Ethernet 10/100/1000Mbps
USB USB 2.0 (8)
RS-232 (422, 485) 6
Digital I/O Lines 8
Watchdog Timer Yes
Temperature Range - Operating 0°C ~ 60°C
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1143197-AIMB-272G2-00A1E
Manufacturer Homepage www.advantech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AIMB-272G2-00A1E CAD Model

Description

The Advantech Corp AIMB-272G2-00A1E is an embedded computer that has a core processor of Intel Core i7/i5/i3/Celeron with a speed of 1.6GHz ~ 2.5GHz.

  • Core Processor: Intel Core i7/i5/i3/Celeron
  • Speed: 1.6GHz ~ 2.5GHz
  • Ethernet Speed: 10/100/1000Mbps
  • USB 2.0 Ports: 8
  • Watchdog Timer: Yes
  • Number of Cores: 2/4
  • Cooling Type: Heat Sink
  • Form Factor: Mini-ITX (without processor)
  • Expansion Site/Bus: Mini-PCIe, PCIe
  • RAM Capacity/Installed: 8GB/0GB
  • Storage Interface: SATA 2.0 (2), SATA 3.0 (2)
  • Video Outputs: CRT, DVI, HDMI, LVDS, VGA
  • RS-232 (422, 485) Ports: 6
  • Digital I/O Lines: 8
  • Manufacturer: Advantech Corp
  • Popularity: Medium
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Power (W): Not Specified
  • Parts Dimension: 6.69" x 6.69" (170mm x 170mm)
