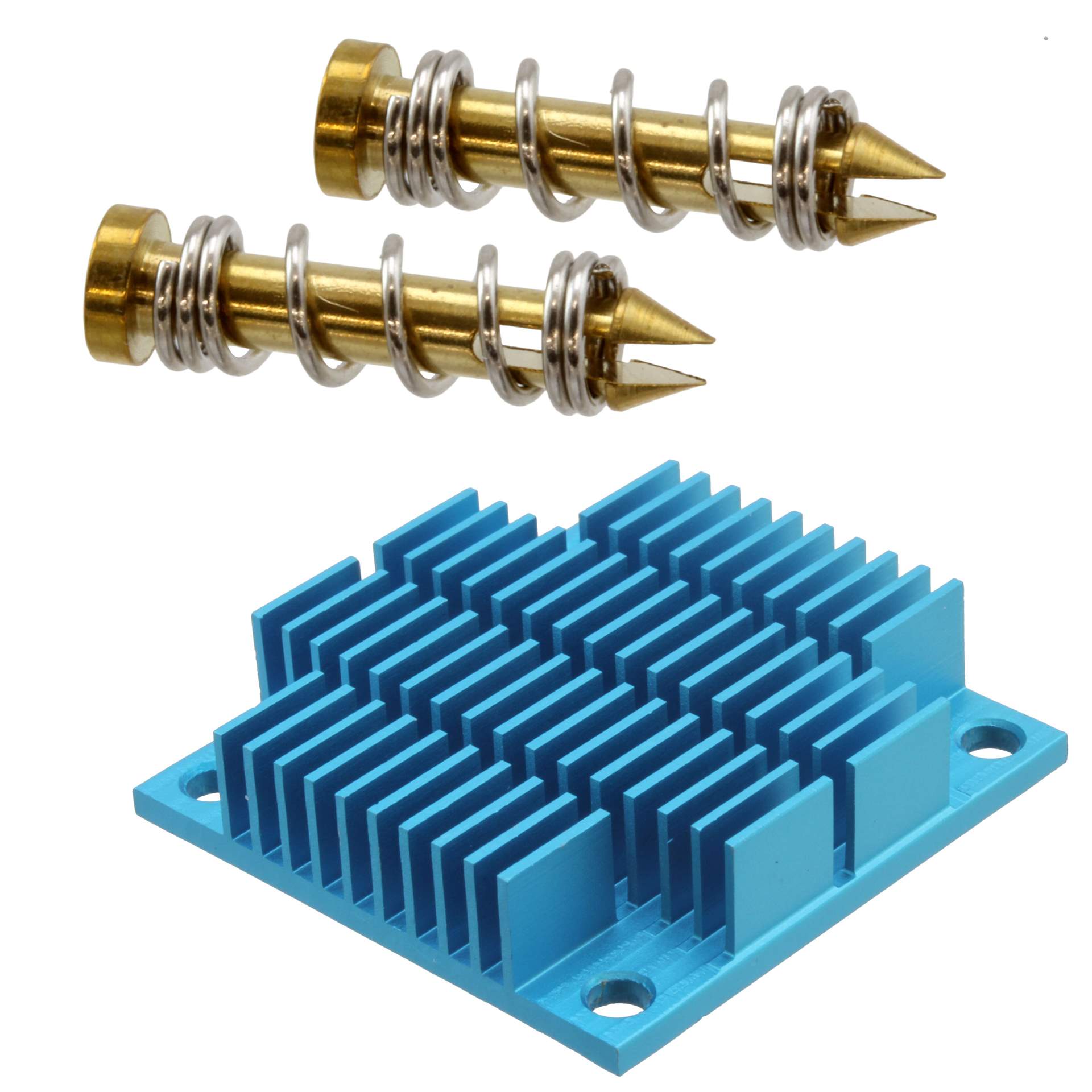

ATS-12A-01-C1-R0

Part No ATS-12A-01-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 40X40X10MM XCUT
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Advanced Thermal Solutions Inc.
Status Active
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 1.575" (40.01mm)
Width 1.575" (40.01mm)
Height Off Base (Height of Fin) 0.394" (10.00mm)
Thermal Resistance @ Forced Air Flow 21.9°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Win Source Part Number 114503-ATS-12A-01-C1-R0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ATS-12A-01-C1-R0 CAD Model

Description

ATS-12A-01-C1-R0: Advanced Cooling Solution

The ATS-12A-01-C1-R0 serves as an advanced cooling solution specifically designed to meet the demanding needs of modern electronic systems. It ensures effective heat transfer, contributing to the overall stability and efficiency of devices.

  • Applications/Projects:
    • LED lighting systems
    • Portable electronic devices
    • Robotics applications
  • Features and Benefits:
    • Excellent thermal performance for critical applications
    • Durable design that withstands harsh conditions
    • Easy to mount and integrate into existing systems

Trust the ATS-12A-01-C1-R0 component to deliver reliable and efficient thermal regulation for your electronic projects.
