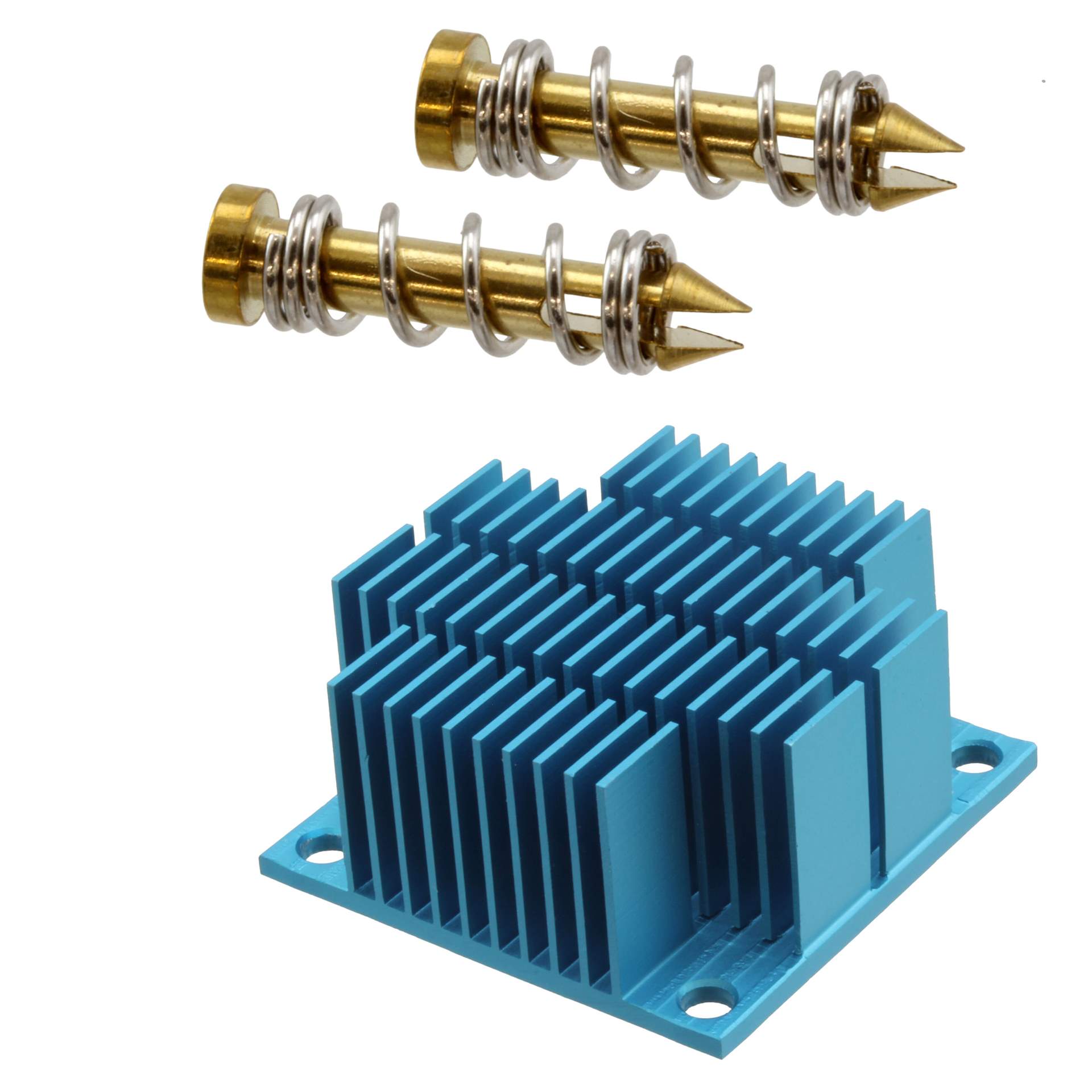

ATS-20C-45-C1-R0

Part No ATS-20C-45-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 25X25X20MM L-TAB
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Advanced Thermal Solutions Inc.
Status Active
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 0.984" (25.00mm)
Width 0.984" (25.00mm)
Height Off Base (Height of Fin) 0.790" (20.00mm)
Thermal Resistance @ Forced Air Flow 14.95°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Win Source Part Number 115024-ATS-20C-45-C1-R0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ATS-20C-45-C1-R0 CAD Model

Description

Product Overview

The ATS-20C-45-C1-R0 is designed for applications that demand superior thermal performance. This solution offers an optimal balance between size and heat dissipation capacity, making it perfect for a variety of high-performance electronic projects.

Key Features & Benefits

  • Efficient Heat Dissipation: Improves device longevity and reliability.
  • Space-Saving Design: Ideal for tight spaces.
  • Robust Materials: Ensures extended service life under varied conditions.

Applications

  • High-Performance Computing
  • Telecommunication Equipment
  • Industrial Electronics

Additional Details

This product is crafted to handle critical thermal management tasks in sophisticated electronic systems, enhancing system performance and reliability.
