Same model may have multiple batches, images only for reference.

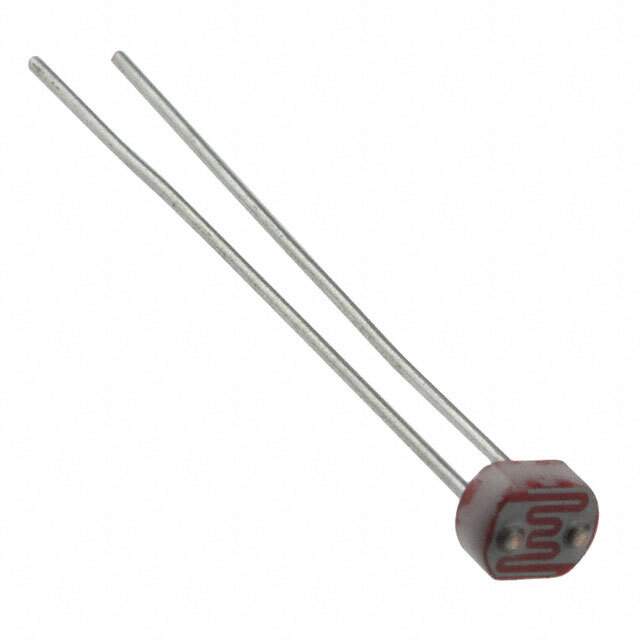

PDV-P9002 Real Image
Same model may have multiple batches, images only for reference.

PDV-P9002

Part No PDV-P9002
Manufacturer Advanced Photonix, Inc.
Catalog Optical Sensors - Photo Detectors - CdS Cells
Description PHOTOCELL 9K-20K OHM 4.20MM  /  CdS Cells 520nm 9 ~ 20kOhms @ 10 lux
Datasheet
PDV-P9002 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photo Detectors - CdS Cells
Mfr Advanced Photonix
Package Bulk
Wavelength 520nm
Voltage - Max 150Vpk
Rise Time (Typ) 60 ms
Fall Time (Typ) 25 ms
Cell Resistance (Min) @ Dark 500 kOhms @ 10 s
Cell Resistance @ Illuminance 9 ~ 20kOhms @ 10 lux
Temperature Range - Operating -30°C ~ 75°C (TA)
Mounting Type Through Hole
Package / Case Radial
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.9500
Other Names PT-PDV-P9002,PDVP9002
Standard Package 500
Win Source Part Number 1183366-PDV-P9002
Ultra Librarian 3D Model Ultra Librarian PDV-P9002 CAD Model

Description

The PT-PDV-P9002 is an optical sensor photo detector with a series of - manufactured by Advanced Photonix.

  • Maximum Voltage: 150Vpk
  • Wavelength: 520nm
  • Rise Time: 60ms
  • Fall Time: 25ms
  • Mounting Type: Through Hole
  • Package/Case: Radial
  • Operating Temperature: -30°C to 75°C (TA)
  • Cell Resistance at Illuminance: 9-20kOhms @ 10 lux
  • Cell Resistance at Dark: 500 kOhms @ 10s
  • ECCN: EAR99
