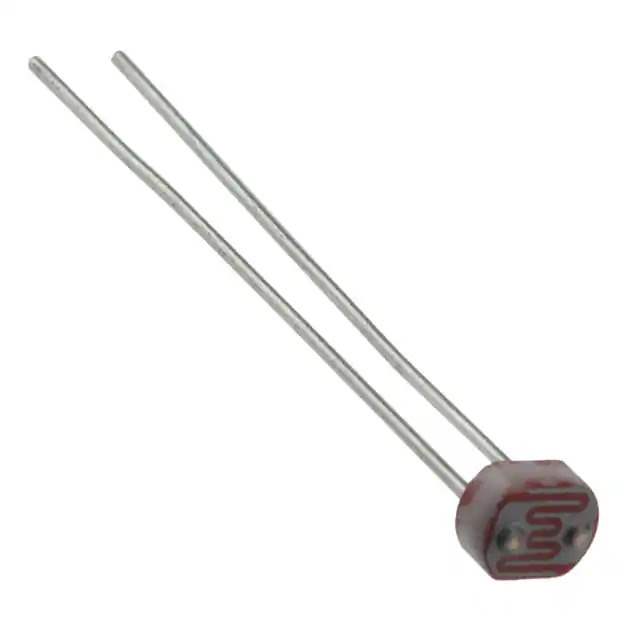

PDV-P9203 Real Image
Same model may have multiple batches, images only for reference.

PDV-P9203

Part No PDV-P9203
Manufacturer Advanced Photonix, Inc.
Catalog Optical Sensors - Photo Detectors - CdS Cells
Description CDS PHOTORES 10K-30KOHM 4.20MM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photo Detectors - CdS Cells
Mfr Advanced Photonix, Inc.
Package Bulk
Product Status Active
Wavelength 520nm
Voltage - Max 150Vpk
Rise Time (Typ) 70 ms
Fall Time (Typ) 15 ms
Cell Resistance (Min) @ Dark 5 MOhms @ 10 s
Cell Resistance @ Illuminance 10 ~ 30kOhms @ 10 lux
Temperature Range - Operating -30°C ~ 75°C (TA)
Mounting Type Through Hole
Package / Case Radial
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.9500
Win Source Part Number 848847-PDV-P9203
Ultra Librarian 3D Model Ultra Librarian PDV-P9203 CAD Model

Description

The 848847-PDV-P9203 is a photo detector CdS cell designed for optical sensing applications.

  • Maximum Voltage: 150Vpk
  • Wavelength: 520nm
  • Mounting Type: Through-Hole
  • Rise Time: 70 ms (typical)
  • Fall Time: 15 ms (typical)
  • Operating Temperature: -30°C to 75°C
  • Resistance: 10-30kOhms @ 10 lux
  • Manufacturer: Advanced Photonix, Inc.
  • Status: Active
  • Package: Bulk (500 pcs)
