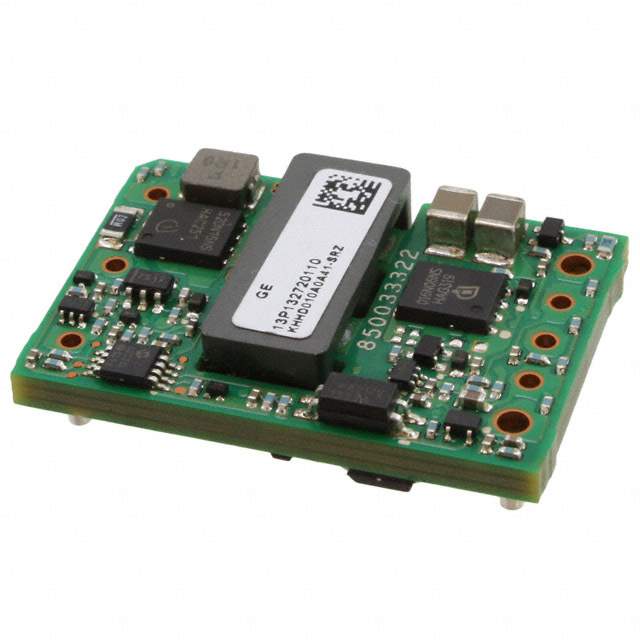

KHHD010A0A41-SRZ Real Image
Same model may have multiple batches, images only for reference.

KHHD010A0A41-SRZ

Part No KHHD010A0A41-SRZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 50W / Isolated Module DC DC Converter 1 Output 5V 10A 18V - 75V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr ABB Power Electronics Inc.
Series Hammerhead™ KHHD010A0A
Package Tape & Reel (TR),Cut Tape (CT)
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Current - Output (Max) 10A
Power (Watts) 50 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 91%
Mounting SMD (SMT)
Package / Case 8-SMD Module
Dimension 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.8mm x 9.5mm)
Control Features Enable, Active Low
Base Product Number KHHD010
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 109173027,555-1296-1,555-1296-2,CC109173027,555-1296-6INACTIVE,KHHD010A0A41SRZ
Standard Package 140
Win Source Part Number 1195128-KHHD010A0A41-SRZ
Ultra Librarian 3D Model Ultra Librarian KHHD010A0A41-SRZ CAD Model

Description

The ABB Power Electronics Inc. KHHD010A0A41-SRZ is an isolated module DC-DC converter that has a power output of 50W and a voltage isolation of 2.25kV.

  • Converter Type: DC-DC Converter, Isolated Module
  • Power Output: 50W
  • Voltage Isolation: 2.25kV
  • Features: Remote On/Off, Over Current Protection, Over Temperature Protection, Over Voltage Protection, Under Voltage Lockout
  • Input Voltage Range: 18V to 75V
  • Output Voltage: 5V
  • Operating Temperature: -40°C to 85°C
  • Dimensions: 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.8mm x 9.5mm)
  • Application: ITE (Commercial)
