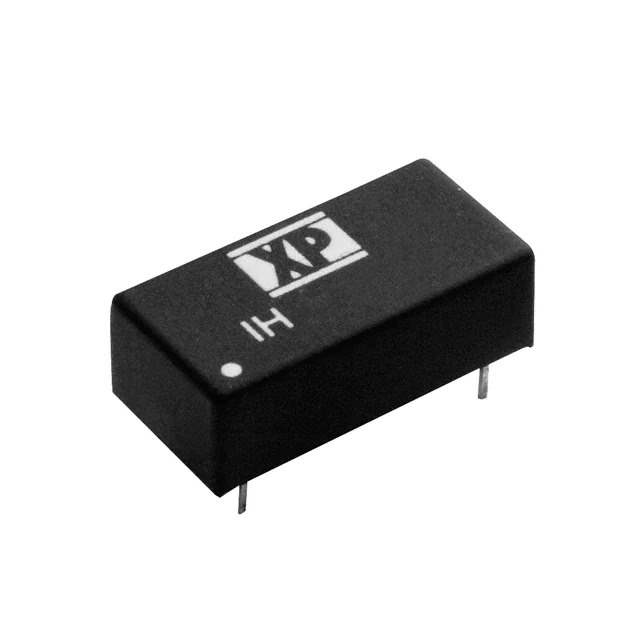

IH0505D Real Image
Same model may have multiple batches, images only for reference.

IH0505D

Part No IH0505D
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W
Datasheet
IH0505D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series IH (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 72%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 0.80" L x 0.40" W x 0.27" H (20.3mm x 10.2mm x 6.9mm)
Base Product Number IH0505
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847494-IH0505D
Ultra Librarian 3D Model Ultra Librarian IH0505D CAD Model

Description

The IH (2W) is an isolated module power supply from XP Power.

  • Power: 2W
  • Package: Tube
  • Size: 0.80" L x 0.40" W x 0.27" H (20.3mm x 10.2mm x 6.9mm)
  • Application: ITE (Commercial)
  • Standard Package: 20 pcs
  • Outputs: Two
  • Output Current (Max): 200mA each
  • Input Voltage: 4.5V to 5.5V
  • Output Voltages: 5V and -5V
  • Efficiency: 72%
  • Temperature Range: -40°C to 85°C
  • Status: Active
  • Base Product Number: IH0505
  • ECCN: EAR99
