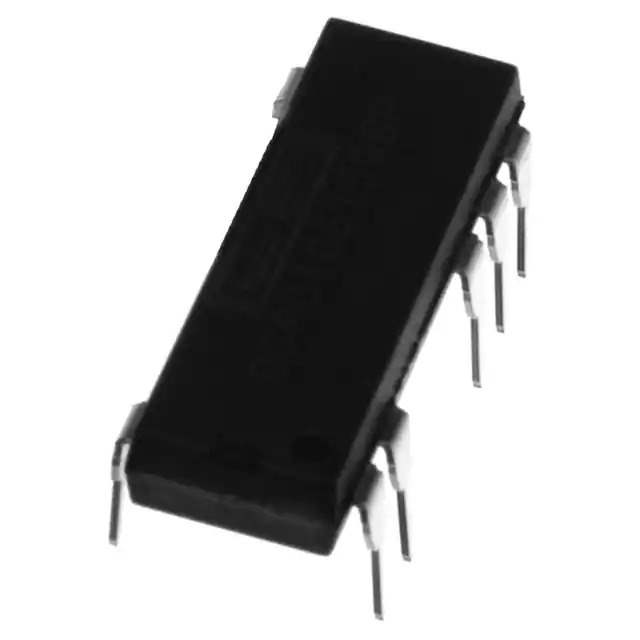

DCV012405P

Part No DCV012405P
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Texas Instruments
Series DCV01 (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OTP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 77%
Mounting Type Through Hole
Package / Case 14-DIP (0.300", 7.62mm), 7 Leads
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Supplier Device Package 7-PDIP
Control Features Enable, Active High
Base Product Number DCV012405
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 584230-DCV012405P
Ultra Librarian 3D Model Ultra Librarian DCV012405P CAD Model

Description

The DCV012405P is a high-performance, integrated circuit developed by Texas Instruments, designed to provide a reliable DC-to-DC power conversion solution. This compact module is engineered to cater to a vast array of applications requiring a stable and efficient power supply, making it a go-to choice for professionals in the electronics industry.

Key Features

  • Input Voltage Range: The DCV012405P operates on a wide input voltage range, accommodating various power sources and ensuring versatility across different applications.
  • Output Voltage: It delivers a stable output voltage, which is crucial for the consistent operation of sensitive electronic components.
  • High Efficiency: With its high conversion efficiency, this power module ensures minimal energy loss during operation, leading to a more sustainable and cost-effective solution.
  • Isolation: The device features reinforced isolation to protect against electrical shocks and to maintain signal integrity across different parts of the electronic system.
  • Compact Design: The small footprint of the DCV012405P makes it an ideal choice for applications where space is at a premium, without compromising on power or efficiency.
  • Thermal Management: Designed with thermal considerations in mind, this product is capable of maintaining optimal operating temperatures, thereby enhancing its longevity and reliability.

Applications

The DCV012405P is tailored for a range of applications, including but not limited to:

  • Industrial control systems
  • Telecommunication equipment
  • Data acquisition systems
  • Medical devices
  • Isolated sensor interfaces

Product Support and Resources

Texas Instruments provides comprehensive support for the DCV012405P, including detailed datasheets, application notes, and design resources. Customers can access a wealth of information to facilitate the integration of this power module into their projects, ensuring a smooth design-in process and reliable operation.

In summary, the DCV012405P from Texas Instruments stands out as a robust and efficient solution for DC-to-DC power conversion, offering a combination of performance, versatility, and support that is ideal for a wide range of electronic applications.
