Same model may have multiple batches, images only for reference.

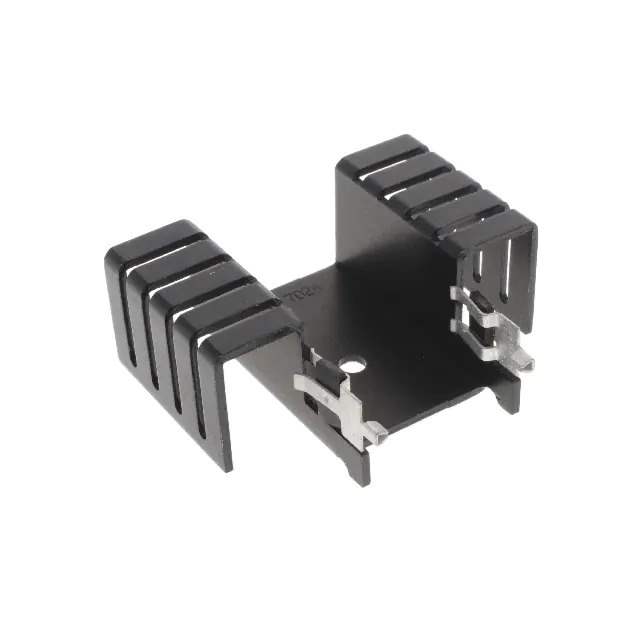

7024B-MTG Real Image
Same model may have multiple batches, images only for reference.

7024B-MTG

Part No 7024B-MTG
Manufacturer Aavid Thermalloy
Catalog Thermal - Heat Sinks
Description HEATSINK TO-220 TAB FOLD 41.15MM
Datasheet
7024B-MTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Heat Sinks
Mfr Aavid Thermalloy
Package Bulk
Product Status Active
Type Board Level, Vertical
Package Cooled TO-220
Attachment Method Bolt On and PC Pin
Shape Rectangular, Fins
Length 1.620" (41.15mm)
Width 2.000" (50.80mm)
Fin Height 0.750" (19.05mm)
Power Dissipation @ Temperature Rise 9.0W @ 60°C
Thermal Resistance @ Forced Air Flow 4.00°C/W @ 200 LFM
Thermal Resistance @ Natural 5.60°C/W
Material Aluminum
Material Finish Black Anodized
Base Product Number 7024
Standard Package 400 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 907771-7024B-MTG
Ultra Librarian 3D Model Ultra Librarian 7024B-MTG CAD Model

Description

The 907771-7024B-MTG Thermal Heat Sink by Aavid Thermalloy is a high-quality cooling solution for electronic components.

  • Type: Board-Level Heat Sink
  • Material: Aluminum
  • Shape: Rectangular with fins
  • Compatible Package: TO-220
  • Attachment Method: Bolts or PC pins
  • Length: 1.620 inches (41.15mm)
  • Width: 2.000 inches (50.80mm)
  • Power Dissipation: 9.0W @ 60°C temperature rise
  • Thermal Resistance: 4.00°C/W @ forced air flow
