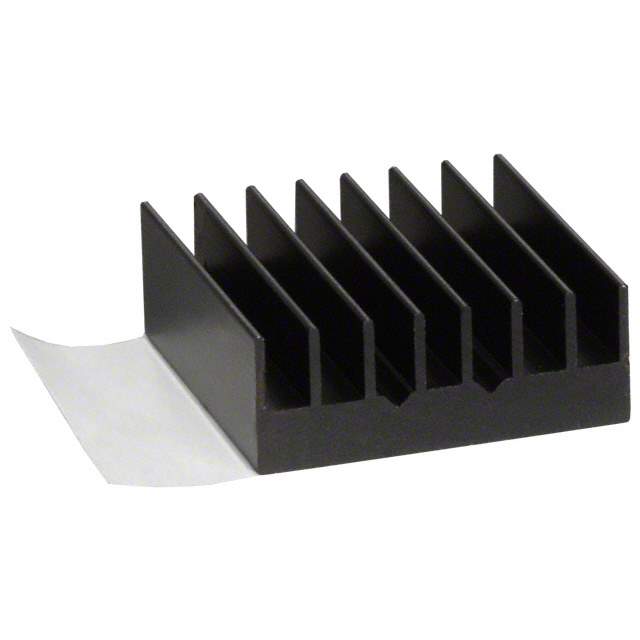

ATS-54250D-C1-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-54250D-C1-R0

Part No ATS-54250D-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEAT SINK 25MM X 25MM X 9.5MM / Heat Sink BGA Aluminum Top Mount
Datasheet
ATS-54250D-C1-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Manufacturer Advanced Thermal Solutions Inc.
Packaging Bulk
Type Top Mount
Package Cooled BGA
Attachment Method Thermal Tape, Adhesive (Included)
Shape Square, Fins
Length 0.984" (25.00mm)
Width 0.984" (25.00mm)
Fin Height 0.374" (9.50mm)
Thermal Resistance @ Forced Air Flow 15.30°C/W @ 200 LFM
Material Aluminum
Material Finish Black Anodized
Base Product Number ATS-542
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Other Part Number ATS1200,ATS54250DC2R0,ATS-54250D-C2-R0
Standard Package 100
Win Source Part Number 1323754-ATS-54250D-C1-R0
Ultra Librarian 3D Model Ultra Librarian ATS-54250D-C1-R0 CAD Model

Description

The ATS-54250D-C1-R0 from Advanced Thermal Solutions Inc. is a top mount heat sink made of aluminum.

  • Mounting Type: Top Mount
  • Material: Aluminum
  • Shape: Square with fins
  • Suitable Package: BGA
  • Length: 0.984" (25.00mm)
  • Width: 0.984" (25.00mm)
  • Fin Height: 0.374" (9.50mm)
  • Thermal Resistance: 15.30°C/W @ 200 LFM
  • Packaging: Bulk
  • ECCN: EAR99
  • REACH Unaffected: Yes
  • HTSUS: 8473.30.5100
  • ROHS3 Compliant: Yes
