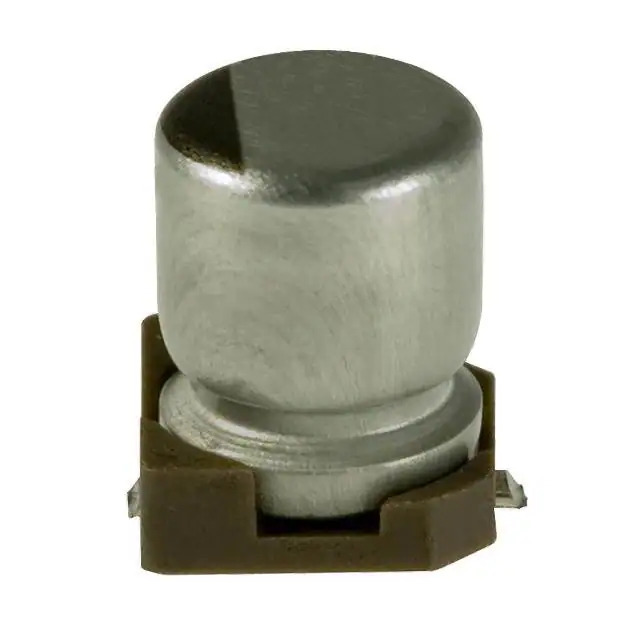

Same model may have multiple batches, images only for reference.
UWT1H010MCL1GB Nichicon
Same model may have multiple batches, images only for reference.

UWT1H010MCL1GB

Part No UWT1H010MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1UF 20% 50V SMD / 1 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWT
Package Tape & Reel
Product Status Active
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 6.3 mA @ 120 Hz
Ripple Current @ High Frequency 9.45 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360258-UWT1H010MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWT1H010MCL1GB CAD Model

Description

The UWT1H010MCL1GB is a surface mount aluminum electrolytic capacitor from Nichicon's UWT series.

  • Capacitance: 1 µF
  • Tolerance: ±20%
  • Voltage - Rated: 50 V
  • Application: General Purpose
  • Temperature Range: -55°C to 105°C
  • Ripple Current - Low Frequency: 6.3 mA @ 120 Hz
  • Ripple Current - High Frequency: 9.45 mA @ 10 kHz
  • Size / Dimension: 4.00mm Dia
  • Height - Seated (Max): 5.40mm
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Packaging: Tape & Reel
  • Lifetime @ Temp.: 1000 Hrs @ 105°C
