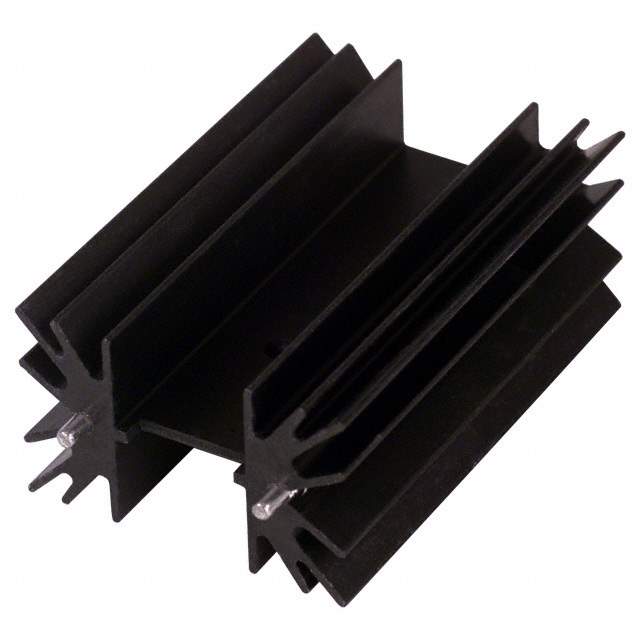

530001B02500G Real Image
Same model may have multiple batches, images only for reference.

530001B02500G

Part No 530001B02500G
Manufacturer Aavid Thermalloy
Catalog Thermal - Heat Sinks
Description HEATSINK TO-218 10W H=2.5" BLK / Heat Sink TO-218 Aluminum 20.0W @ 60°C Board Level, Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Aavid, Thermal Division of Boyd Corporation
Package Bulk
Type Board Level, Vertical
Package Cooled TO-218
Attachment Method Bolt On and PC Pin
Shape Rectangular, Fins
Length 2.500" (63.50mm)
Width 1.650" (41.91mm)
Fin Height 1.000" (25.40mm)
Power Dissipation @ Temperature Rise 20.0W @ 60°C
Thermal Resistance @ Forced Air Flow 2.00°C/W @ 300 LFM
Thermal Resistance @ Natural 8.00°C/W
Material Aluminum
Material Finish Black Anodized
Base Product Number 530001
MSL Level Not Applicable
ECCN EAR99
HTSUS 8473.30.5100
Other Names HS385,042663
Standard Package 250
Win Source Part Number 1163004-530001B02500G
Ultra Librarian 3D Model Ultra Librarian 530001B02500G CAD Model

Description

The Aavid, Thermal Division of Boyd Corporation 530001B02500G is a heat sink for TO-218 packages.

  • Thermal Resistance: 2.00°C/W @ 300 LFM
  • Power Dissipation: 20.0W @ 60°C temperature rise
  • Shape: rectangular with fins
  • Material: aluminum with a black anodized finish
  • Supply and Demand Status: limited
