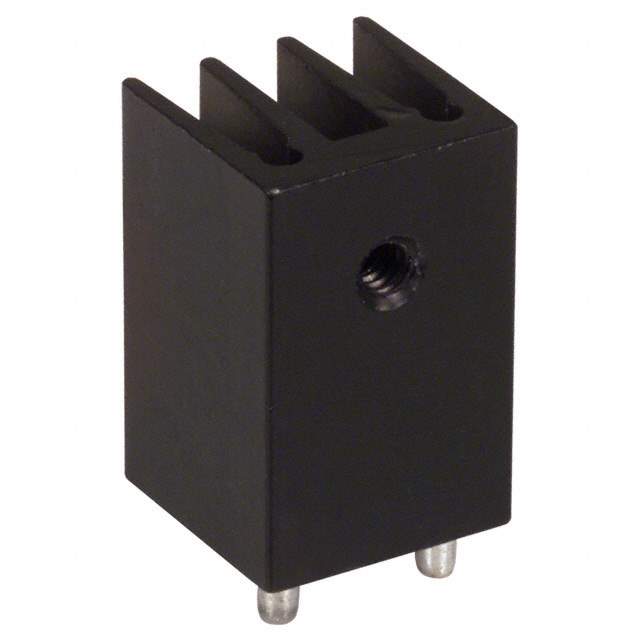

581002B02500G Real Image
Same model may have multiple batches, images only for reference.

581002B02500G

Part No 581002B02500G
Manufacturer Aavid Thermalloy
Catalog Thermal - Heat Sinks
Description HEATSINK TO-220 PWR BLK W/PINS / Heat Sink TO-220 Aluminum 2.5W @ 50°C Board Level, Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Aavid, Thermal Division of Boyd Corporation
Package Bulk
Type Board Level, Vertical
Package Cooled TO-220
Attachment Method Bolt On and PC Pin
Shape Rectangular, Fins
Length 1.000" (25.40mm)
Width 0.640" (16.26mm)
Fin Height 0.640" (16.26mm)
Power Dissipation @ Temperature Rise 2.5W @ 50°C
Thermal Resistance @ Forced Air Flow 4.00°C/W @ 500 LFM
Thermal Resistance @ Natural 17.40°C/W
Material Aluminum
Material Finish Black Anodized
Base Product Number 581002
MSL Level Not Applicable
ECCN EAR99
HTSUS 8473.30.5100
Other Names 041821,HS387
Standard Package 500
Win Source Part Number 1038928-581002B02500G
Ultra Librarian 3D Model Ultra Librarian 581002B02500G CAD Model

Description

The Aavid Thermalloy 1038928-581002B02500G is a heat sink that is designed for TO-220 package cooling.

  • Heat Sink Type: For TO-220 Package
  • Shape: Rectangular with Fins
  • Material: Aluminum
  • Power Dissipation: 2.5W @ 50°C
  • Thermal Resistance: 4.00°C/W @ 500 LFM
  • Mounting: Board Level, Vertical
  • Popularity: High
