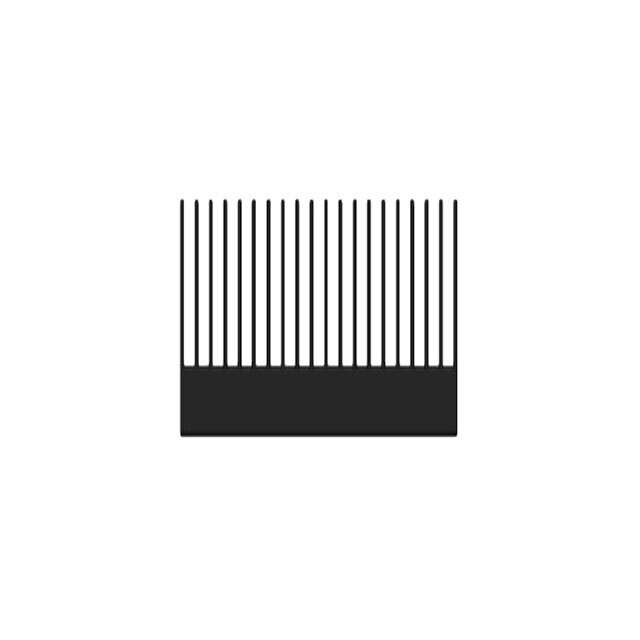

ATS-EXL121-300-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-EXL121-300-R0

Part No ATS-EXL121-300-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description PCIE EXTRUSION PROFILE, AL6063 / Heat Sink Aluminum Top Mount, Extrusion
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Package Bulk
Type Top Mount, Extrusion
Attachment Method Adhesive
Shape Rectangular, Fins
Length 11.811" (300.00mm)
Width 2.362" (60.00mm)
Fin Height 0.551" (14.00mm)
Thermal Resistance @ Forced Air Flow 3.20°C/W @ 200 LFM
Thermal Resistance @ Natural 16.10°C/W
Material Aluminum
Material Finish Degreased
Base Product Number ATS-EXL
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Other Names 684-ATS-EXL121-300-R0
Standard Package 1
Win Source Part Number 1158722-ATS-EXL121-300-R0
Ultra Librarian 3D Model Ultra Librarian ATS-EXL121-300-R0 CAD Model

Description

The ATS-EXL121-300-R0 from Advanced Thermal Solutions Inc. is a top mount extrusion type heat sink made of aluminum.

  • Mount: Top
  • Type: Extrusion
  • Material: Aluminum
  • Package: Bulk
  • Length: 11.811" (300.00mm)
  • Width: 2.362" (60.00mm)
  • Thermal Resistance (Forced Air Flow): 3.20°C/W @ 200 LFM
  • Thermal Resistance (Natural Air Flow): 16.10°C/W
  • Fin Height: 0.551" (14.00mm)
  • Series: ATS-EXL
  • Category: Fans and Thermal Management
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8473.30.5100
