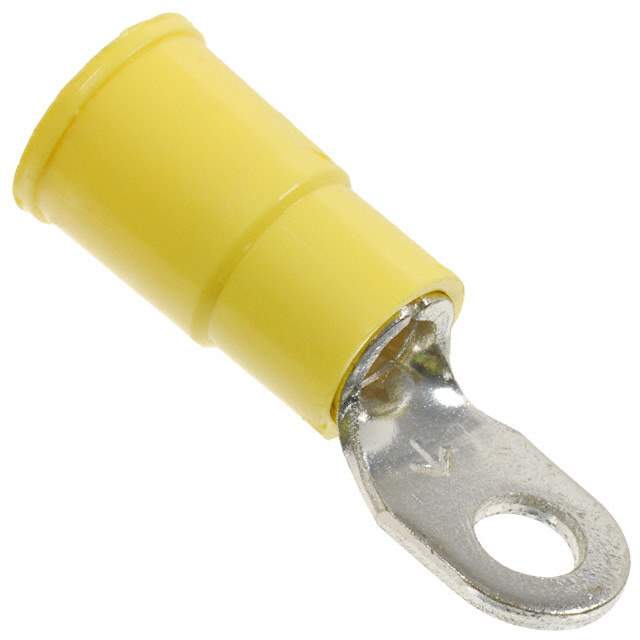

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Mfr 3M
Series Highland™
Package Bulk
Terminal Type Circular
Stud/Tab Size 6 Stud
Thickness 0.040" (1.02mm)
Width - Outer Edges 0.280" (7.11mm)
Length - Overall 0.980" (24.89mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Insulated
Features -
Color Yellow
Contact Material Copper, ETP
Contact Finish Tin
Insulation Diameter 0.250" (6.35mm)
Material - Insulation Vinyl
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 50 pcs
Win Source Part Number 1381253-94751
Ultra Librarian 3D Model Ultra Librarian 94751 CAD Model

Description

The Highland™ series offers high-quality ring connectors for various electrical applications.

  • Win Source Part Number: 1381253-94751
  • Color: Yellow
  • Termination: Crimp
  • Wire Gauge: 10-12 AWG
  • Contact Material: Copper, ETP
  • Insulation Material: Vinyl
  • Length: 0.980" (24.89mm)
  • Stud/Tab Size: 6
  • Mounting Type: Free Hanging (In-Line)
