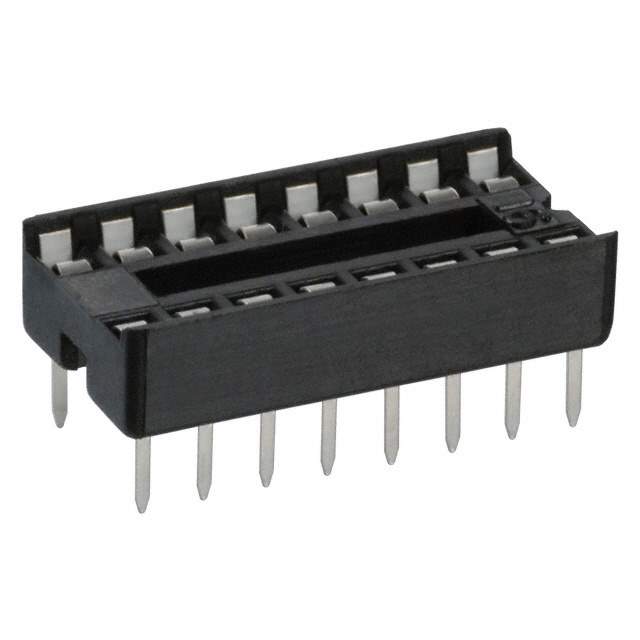

The electronic component is a connector socket for ICs and transistors.

• Win Source Part Number: 1025639-4816-3000-CP
• Manufacturer: 3M
• Category: Connectors and interconnects
• Series: 4800
• Type: DIP, 0.3" (7.62mm) row spacing
• Features: Open frame
• Termination: Solder
• Package: Tube
• Housing Material: Polyester, glass filled
• Material Flammability Rating: UL94 V-0
• Standard Package: 10,000
• Positions/Pins (Grid): 16 (2 x 8)
• Pitch-Mating: 0.100" (2.54mm)
• Contact Finish-Mating: Tin
• Contact Finish Thickness-Mating: 35.4µin (0.90µm)
• Contact Material-Mating: Phosphor bronze
• Pitch-Post: 0.100" (2.54mm)
• Contact Finish-Post: Tin
• Contact Finish Thickness-Post: 35.0µin (0.90µm)
• Contact Material-Post: Phosphor bronze
• Operating Temperature Range: -25°C ~ 85°C
