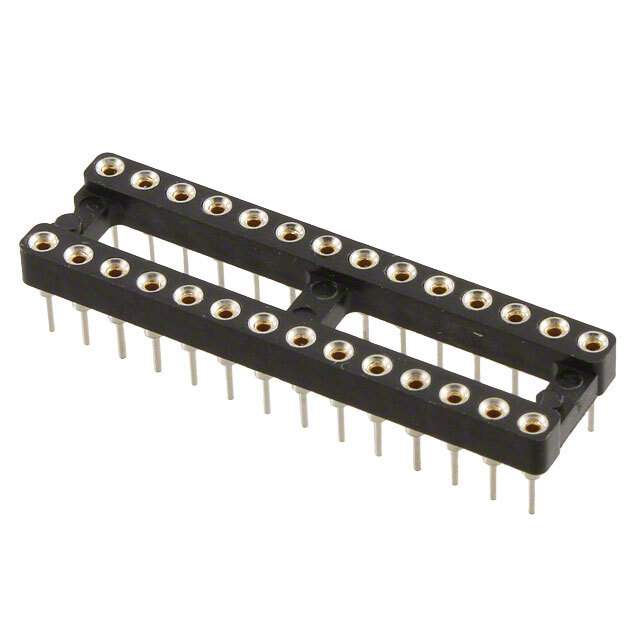

ED3128-ND Real Image
Same model may have multiple batches, images only for reference.

ED3128-ND

Part No ED3128-ND
Manufacturer Mill-Max Manufacturing Corp.
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 28POS TINLEAD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Mill-Max Manufacturing Corp.
Packaging Tube/Rail
Status Active
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 28 (2 x 14)
Pitch - Mating 2.54mm
Contact Finish - Mating Tin-Lead
Contact Finish Thickness - Mating 200μin (5.08μm)
Contact Material - Mating Beryllium Copper
Mounting Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin-Lead
Contact Finish Thickness - Post 200μin (5.08μm)
Contact Material - Post Brass Alloy
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Temperature Range - Operating -55°C to 125°C
Termination Post Length 0.125" (3.18mm)
Current Rating 3A
Win Source Part Number 203527-ED3128-ND
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ED3128-ND CAD Model

Description

ED3128-ND Resistor

The ED3128-ND is a precision resistor well-suited for applications requiring accurate resistance. Its compact design and dependable performance make it an ideal choice for various electronic applications.

  • Features:
    • High precision tolerance
    • Wide resistance range
    • Robust design ensuring durability
  • Benefits:
    • Consistent performance over time
    • Optimal power dissipation
    • Simplified circuit design
  • Applications:
    • Analog circuits
    • Measurement equipment
    • Automotive electronics
