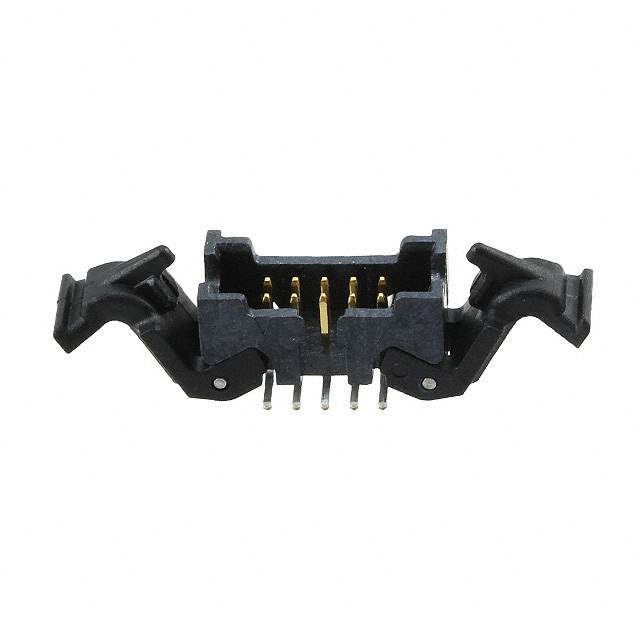

45210-220230

Name: 45210-220230
Brand: 3M
SKU: 1338539
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	45210-220230
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 1.27MM / Connector Header Surface Mount 10 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	3M
Series	452
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Short
Insulation Height	0.222" (5.65mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot, Pick and Place
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	1A
Voltage Rating	125V
Mated Stacking Heights	5.84mm, 6.60mm, 7.21mm, 8.13mm
Contact Finish Thickness - Post	200.0µin (5.08µm)
Base Product Number	45210
Standard Package	500
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1338539-45210-220230
Ultra Librarian 3D Model	Ultra Librarian 45210-220230 CAD Model

Description

The 3M 452 series header male pins are rectangular connectors with a pitch of 0.050 inches (1.27 mm) and 10 positions.

Pitch: 0.050 inches (1.27 mm)
Positions: 10
Contact Type: Male Pin
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks, Short
Contact Material: Copper Alloy
Contact Finish: Gold
Voltage Rating: 125V
Current Rating: 1A
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Not Specified
Mounting Type: Surface Mount
Row Spacing: 0.050 inches (1.27 mm)
Insulation Height: 0.222 inches (5.65 mm)
Contact Shape: Square
Temperature Range: -65°C to 125°C
Application: Board-to-Cable/Wire
