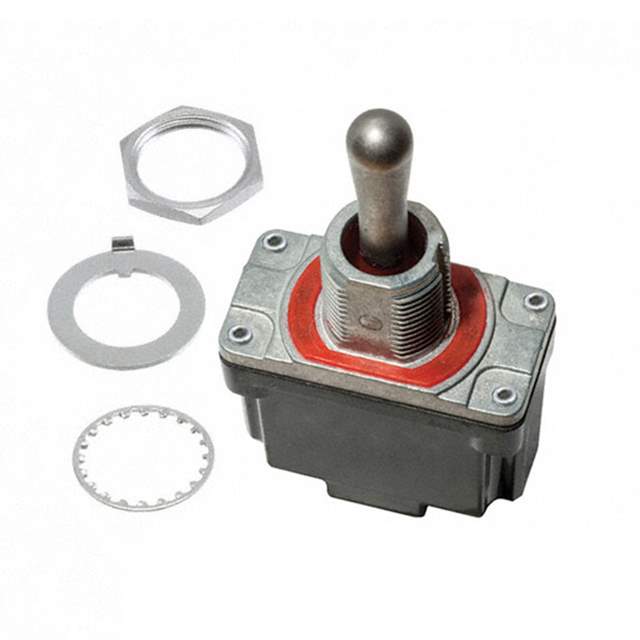

PT105SZQ Real Image
Same model may have multiple batches, images only for reference.

PT105SZQ

Part No PT105SZQ
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH PT105S TOGGLE / Toggle Switch SPDT Panel Mount
Datasheet
PT105SZQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr C&K
Series PT
Package Tray
Mounting Type Panel Mount
Circuit SPDT
Switch Function Mom-Off-Mom
Current Rating (Amps) 10A (AC/DC)
Voltage Rating - AC 277 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 17.20mm
Illumination Non-Illuminated
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 12.40mm Dia
Bushing Thread 15/32-32
Ingress Protection IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Features Sealed
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Stainless Steel
Electrical Life 10,000 Cycles
Base Product Number PT105S
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2266-PT105SZQ,CKN11545,*PT105SZQ
Standard Package 20
Win Source Part Number 1231246-PT105SZQ
Ultra Librarian 3D Model Ultra Librarian PT105SZQ CAD Model

Description

The C&K PT series toggle switch from C&K is a SPDT circuit switch with a mom-off-mom switch function.

  • Circuit: SPDT
  • Switch Function: Mom-Off-Mom
  • Voltage Rating AC: 277 V
  • Voltage Rating DC: 28 V
  • Current Rating (AC/DC): 10 A
  • Panel Cutout: 12.40mm dia
  • Bushing Thread: 15/32-32
  • Actuator Type: Standard Round
  • Actuator Length: 17.20mm
  • Actuator Material: Stainless Steel
  • Illumination Type: Non-Illuminated
  • Mounting Type: Panel
  • Sealed: Yes
  • Ingress Protection: IP66/IP68
  • Electrical Life: 10,000 Cycles
  • Operating Temperature: -40°C to 85°C
