Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Series 3000
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 26
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 26-28 AWG, Stranded or Solid
Features Feed Through, Polarizing Key
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Color Gray
Win Source Part Number 763332-3399-6600
Family Name 3000
Introduction Date May 22, 1998
ECCN EAR99
Country of Origin United States of America
Halogen Free Unknown
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 3399-6600 CAD Model

Description

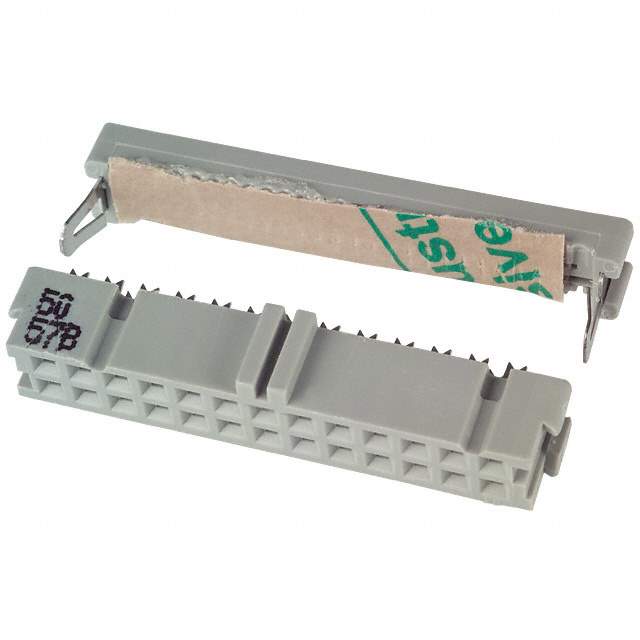

The 3M 763332-3399-6600 connector is a 26-position receptacle with a pitch of 0.100" (2.54mm) and a gray color.

  • Positions: 26
  • Pitch: 0.100" (2.54mm)
  • Color: Gray
  • Features: Feed-through and polarizing key
  • Contact Type: Female socket
  • Rows: Two
  • Row Spacing: 0.100" (2.54mm)
  • Wire Gauge: 26-28 AWG, stranded or solid
  • Contact Finish: Gold with a thickness of 30μin (0.76μm)
  • Cable Termination: IDC
  • Wire Type: Ribbon cable
  • Mounting: Free-hanging (in-line)
  • Series: 3000
  • Commonly Used in: Industrial applications
  • Halogen-Free: Yes
  • Country of Origin: United States of America
  • Estimated EOL Date: 2024
  • Supply and Demand Status: Limited
  • Popularity: Medium
