Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr ON Semiconductor
Package Bulk
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 28.2V
Voltage - Breakdown (Min) 31.4V
Voltage - Clamping (Max) @ Ipp 45.7V
Current - Peak Pulse (10/1000µs) 13.2A (8/20µs)
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case T-18, Axial
Supplier Device Package Axial
Base Product Number P6KE
Standard Package 2,959 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 651918-P6KE33AG

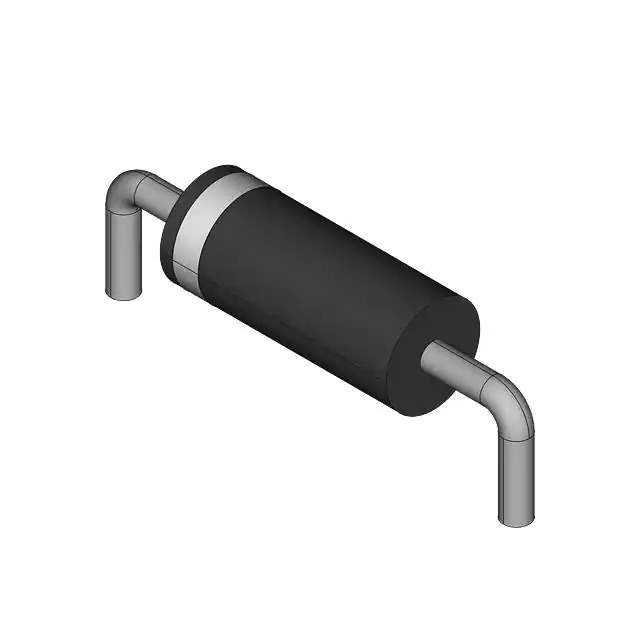

Ultra Librarian 3D Model Ultra Librarian P6KE33AG CAD Model

Description

The ON Semiconductor P6KE33AG is a high-quality Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by system inductive load switching and lightning. This robust TVS diode is a great solution for safeguarding voltage-sensitive components which can be affected by transient voltage spikes. The P6KE33AG is particularly well-suited for applications in the industrial, automotive, telecommunications, and consumer electronics markets.

Key Features

  • Peak Pulse Power Dissipation: The P6KE33AG is capable of handling 600W peak pulse power dissipation for a 10/1000μs waveform, ensuring reliable protection against high energy transients.
  • Breakdown Voltage: It features a stand-off voltage of 33V, which allows it to clamp transient voltages and prevent damage to the protected component.
  • Response Time: With a fast response time, typically less than 1.0 picosecond from 0V to BV min, the P6KE33AG can react quickly to transient events, minimizing the risk of damage to your circuit.
  • Construction: The axial-lead package allows for easy PCB layout and is designed for through-hole mounting, making it suitable for a variety of applications.
  • Operating Temperature: The diode operates within a temperature range of -55°C to +175°C, ensuring stability and performance under extreme conditions.
  • Certifications: It is RoHS compliant and meets the ISO 9001, ISO/TS 16949, and ISO 14001 standards, reflecting ON Semiconductor's commitment to quality and environmental management.

Applications

The P6KE33AG is versatile and can be used in numerous applications to protect against voltage transients. These include:

  • Power supply circuits
  • Automotive systems
  • Industrial equipment
  • Telecommunication devices
  • Consumer electronics

With its robust design and reliable performance, the ON Semiconductor P6KE33AG TVS diode is an essential component for any design engineer looking to enhance circuit protection in their electronic designs.
