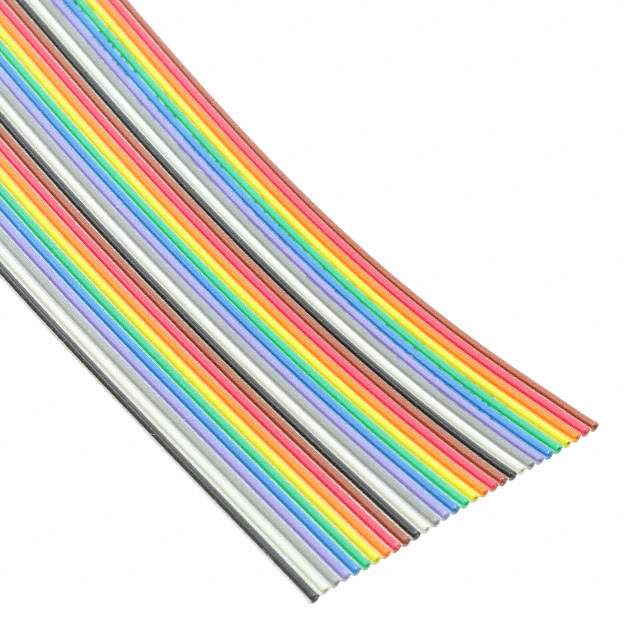

3533 MC005 Real Image
Same model may have multiple batches, images only for reference.

3533 MC005

Part No 3533 MC005
Manufacturer Alpha Wire
Catalog Flat Ribbon Cables
Description CBL RIBN 30COND 0.052 MULT 100' / Flat Ribbon Cable Multiple 30 Conductors 0.052" (1.32mm) Flat Cable 100.0' (30.48m)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires>Flat Ribbon Cables
Mfr Alpha Wire
Series MIL-DTL-16878/1 Type B
Package Spool
Cable Type Flat Cable
Number of Conductors 30
Pitch 0.052" (1.32mm)
Length 100.0' (30.48m)
Wire Gauge 22 AWG
Conductor Strand 19 Strands / 34 AWG
Shielding Unshielded
Jacket Color Multiple
Ribbon Thickness 0.051" (1.30mm)
Ribbon Width 1.530" (38.86mm)
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Voltage 600 V
Temperature Range - Operating -20°C ~ 105°C
Ratings UL Style 2713
Conductor Material Copper, Tinned
Base Product Number 3533
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 3533 MC005-ND,3533MC005
Standard Package 1
Win Source Part Number 1150315-3533 MC005
Ultra Librarian 3D Model Ultra Librarian 3533 MC005 CAD Model

Description

The 3533 MC005 flat ribbon cables are designed to provide reliable connections for electronic components from Alpha Wire.

  • Pitch: 0.052" (1.32mm)
  • Length: 100.0' (30.48m)
  • Shielding: Unshielded
  • Voltage Rating: 600 V
  • Conductors: 30
  • Conductor Material: Copper, Tinned
  • Conductor Strand: 19 strands / 34 AWG
  • Jacket Material: Poly-Vinyl Chloride (PVC)
  • Jacket Color: Multiple
  • Temperature Range: -20°C to 105°C
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • HTSUS: 8544.49.3080
