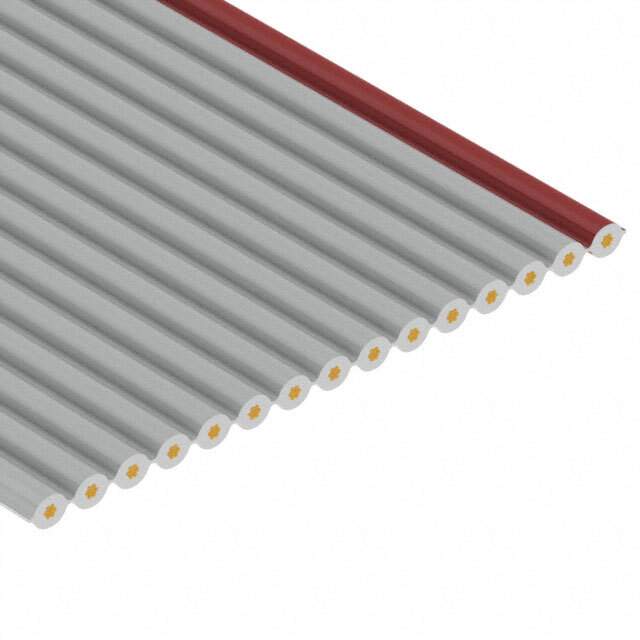

3580/16 SL005 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Flat Ribbon Cables
Mfr Alpha Wire
Package Spool
Cable Type Flat Cable
Number of Conductors 16
Pitch 0.050" (1.27mm)
Length 100.0' (30.48m)
Wire Gauge 28 AWG
Conductor Strand 7 Strands / 36 AWG
Shielding Unshielded
Jacket Color Gray
Ribbon Thickness 0.033" (0.84mm)
Ribbon Width 0.800" (20.32mm)
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Voltage 300 V
Temperature Range - Operating -20°C ~ 105°C
Ratings UL Style 2651
Conductor Material Copper, Tinned
First Conductor Mark Red
Base Product Number 3580/16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 3580/16SL005,3580/16 SL005-ND
Standard Package 10
Win Source Part Number 1032660-3580/16 SL005
Ultra Librarian 3D Model Ultra Librarian 3580/16 SL005 CAD Model

Description

This is a flat ribbon cable, manufactured by Alpha Wire, with 16 unshielded conductors, each made of 28 AWG copper, tinned strands.

  • Conductors: 16 Unshielded
  • AWG: 28
  • Pitch: 0.050 inches (1.27 mm)
  • Ribbon Thickness: 0.033 inches (0.84 mm)
  • Width: 0.800 inches (20.32 mm)
  • Insulation: Poly-Vinyl Chloride (PVC)
  • Color: Gray
  • Length: 100 feet (30.48 meters)
  • Temperature Range: -20°C to 105°C
  • Voltage Rating: 300V
  • UL Style: 2651
  • First Conductor: Red Marked
  • Package: Spool
