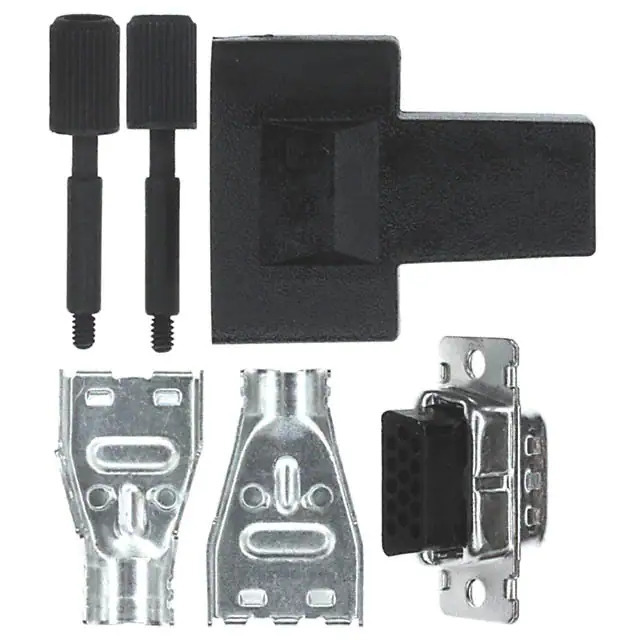

1658678-1 TE Connectivity
Same model may have multiple batches, images only for reference.

1658678-1

Part No 1658678-1
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB HD HOUSING PLUG 15POS / Plug for Male Contacts Housing D-Sub, High Density Connector 15 Position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-22
Package Bulk
Product Status Active
Connector Style D-Sub, High Density
Connector Type Plug for Male Contacts
Number of Positions 15
Number of Rows 3
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Cable Side (4-40)
Features Backshell, Grounding Indents, Shielded
Shell Material, Finish Steel, Tin Plated
Shell Finish Thickness 200µin (5.08µm)
Ingress Protection -
Mating Cycles -
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 1658678
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1363814-1658678-1
Ultra Librarian 3D Model Ultra Librarian 1658678-1 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HDP-22 D-Sub Connector Housing is a high-quality connector designed for various applications in the electronics industry.

  • Color: Black
  • Connector Type: Plug for Male Contacts
  • Number of Positions: 15
  • Number of Rows: 3
  • Mounting Type: Free Hanging (In-Line)
  • Temperature Range: Not Specified
  • Contacts Included: No
  • Series: AMPLIMITE HDP-22
  • Product Status: Active
  • Packaging: Bulk
  • Features: Backshell, Grounding Indents, Shielded
  • Shell Material: Steel
  • Shell Plating: Tin
