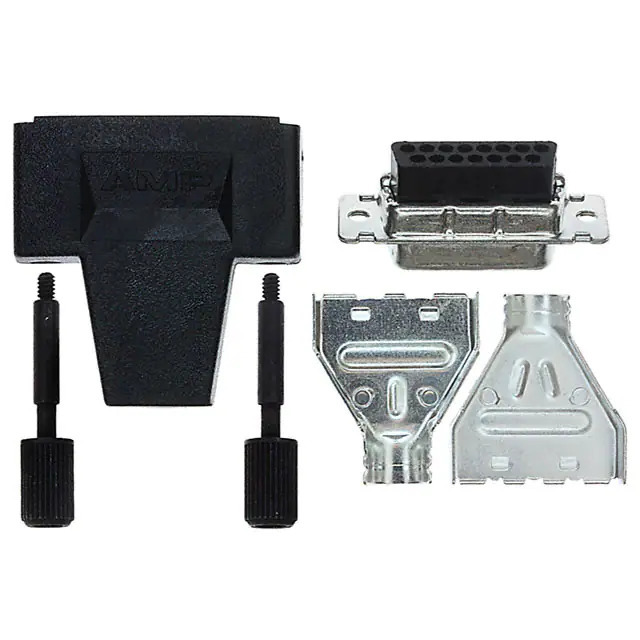

Same model may have multiple batches, images only for reference.

1658656-1

Get a Quote

Part No	1658656-1
Manufacturer	TE Connectivity
Catalog	D - SUB, D - SHAPED connectors
Description	CONN D-SUB HOUSING RCPT 15POS / Receptacle for Female Contacts Housing D-Sub Connector 15 Position
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
Mfr	TE Connectivity AMP Connectors
Series	AMPLIMITE HDP-20
Package	Bulk
Product Status	Active
Connector Style	D-Sub
Connector Type	Receptacle for Female Contacts
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layout	2 (DA, A)
Contact Type	Signal
Mounting Type	Free Hanging (In-Line)
Flange Feature	Cable Side (4-40)
Features	Backshell, Shielded
Shell Material, Finish	Steel, Tin Plated
Shell Finish Thickness	200µin (5.08µm)
Ingress Protection	-
Mating Cycles	-
Dielectric Material	Polyamide (PA), Nylon, Glass Filled
Color	Black
Note	Contacts Not Included
Base Product Number	1658656
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8538.90.8180
Win Source Part Number	1363768-1658656-1
Ultra Librarian 3D Model	Ultra Librarian 1658656-1 CAD Model

Alternative Products

Product Part Number	Manufacturer	Package	Country	Similarity	Description

Description

The TE Connectivity AMP Connectors AMPLIMITE HDP-20 series offers a versatile solution for D-sub connector applications.

Package: Bulk
Mounting Type: Free Hanging (In-Line)
Number of Positions: 15
Contact Gender: Receptacle (Female)
Number of Rows: 2
Shielded: Yes
Color: Black
Shell Size: 2 (DA, A)
Shell Material: Steel
Contact Type: Signal
Series: AMPLIMITE HDP-20
Product Status: Active
