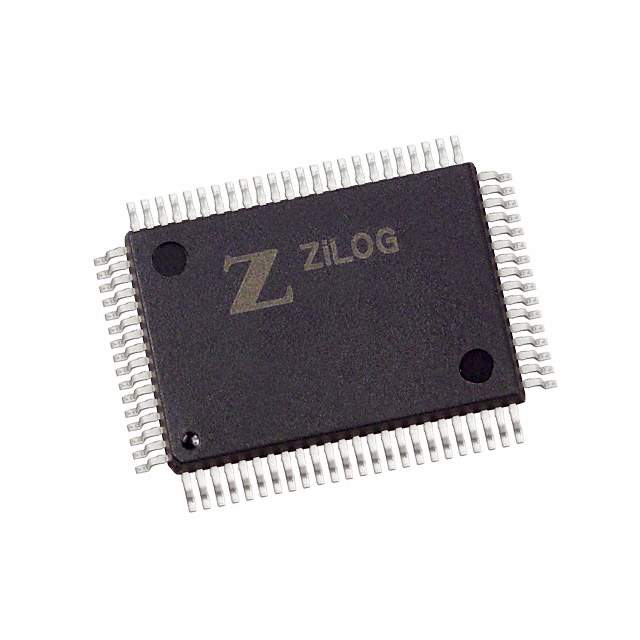

Z8S18010FSG Real Image
Same model may have multiple batches, images only for reference.

Z8S18010FSG

Part No Z8S18010FSG
Manufacturer Zilog
Catalog Embedded - Microprocessors
Description IC MPU Z180 10MHZ 80QFP / Z8S180 Microprocessor IC series 1 Core, 8-Bit 10MHz 80-QFP
Datasheet
Z8S18010FSG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microprocessors
Mfr Zilog
Series Z180
Package Tray
Core Processor Z8S180
Number of Cores/Bus Width 1 Core, 8-Bit
Speed 10MHz
RAM Controllers DRAM
Graphics Acceleration No
Voltage - I/O 5.0V
Temperature Range - Operating 0°C ~ 70°C (TA)
Package / Case 80-BQFP
Supplier Device Package 80-QFP
Additional Interfaces ASCI, CSIO, UART
Base Product Number Z8S18010
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Other Names 269-4296,Z8S18010FSG-ND
Standard Package 66
Win Source Part Number 1206123-Z8S18010FSG
Ultra Librarian 3D Model Ultra Librarian Z8S18010FSG CAD Model

Description

The Z8S18010FSG by Zilog is an embedded microprocessor from the Z180 series.

  • Number of Cores: 1
  • Bus Width: 8-bit
  • Speed: 10MHz
  • Features: DRAM RAM Controllers
  • Additional Interfaces: ASCI, CSIO, UART
  • Package: 80-BQFP
  • Standard Package: 66
  • RoHS: Non-Compliant
