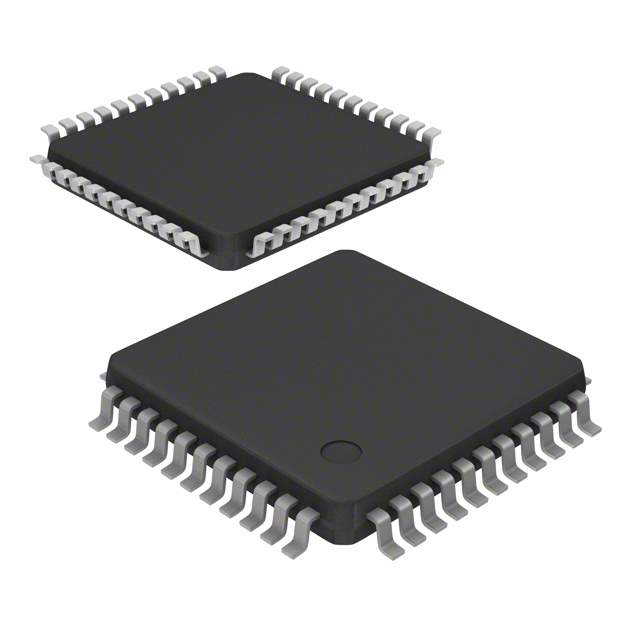

Z8F1680AN020SG

Name: Z8F1680AN020SG
Brand: Zilog
SKU: 904231
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	Z8F1680AN020SG
Manufacturer	Zilog
Catalog	Embedded - Microcontrollers
Description	IC MCU 8BIT 16KB FLASH 44QFP
Datasheet	Z8F1680AN020SG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits (ICs)
Estimated Pruduction Lead Time	24 Weeks
Features	eZ8 series Microcontroller IC 8-Bit 20MHz 16KB (16K x 8) FLASH 44-LQFP (10x10)
Manufacturer	Zilog
Series	Encore!® XP®
Package	Tray
Core Processor	eZ8
Core Size	8-Bit
Speed	20MHz
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, LED, LVD, POR, PWM, Temp Sensor, WDT
Number of I/O	37
Program Memory Size	16KB (16K x 8)
Program Memory Type	FLASH
Supply Voltage	1.8V ~ 3.6V
Data Converters	A/D 8x10b
Oscillator Type	Internal
Operating Temperature Range	0°C ~ 70°C (TA)
Mounting	Surface Mount
Package	44-LQFP
Case / Package	44-LQFP (10x10)
Family Name	Z8F1680
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.31.0001
Quantity per package	160
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	904231-Z8F1680AN020SG
Ultra Librarian 3D Model	Ultra Librarian Z8F1680AN020SG CAD Model

Description

The Zilog Z8F1680AN020SG is an 8-bit microcontroller designed for use in a variety of electronic applications. It has a program memory size of 16KB (16K x 8) and a RAM size of 1K x 8.

Speed: 20MHz
Operating Supply Voltage: 1.8V ~ 3.6V
Package: 44-LQFP (10x10)
Halogen-Free: Compliant
Supply and Demand: Balanced
Pieces per Package: 160
