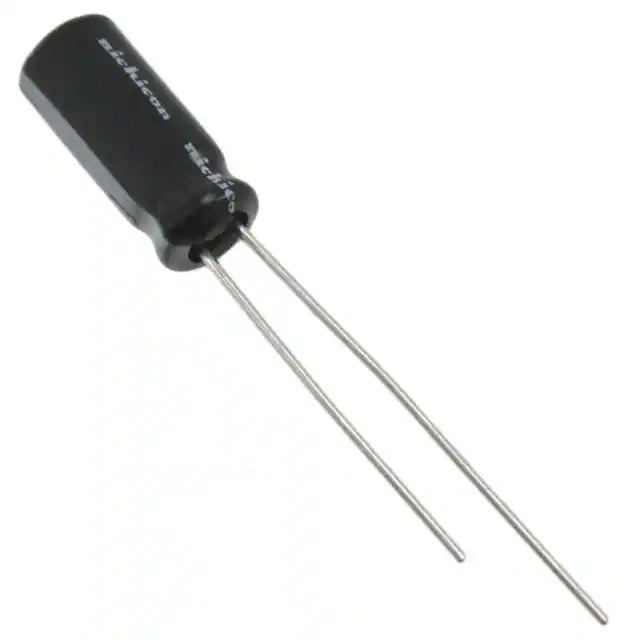

Same model may have multiple batches, images only for reference.

UHE1H4R7MDD

Name: UHE1H4R7MDD
Brand: Nichicon
SKU: 1357729
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UHE1H4R7MDD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 4.7UF 20% 50V RADIAL / 4.7 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UHE1H4R7MDD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHE
Package	Bulk
Product Status	Obsolete
Capacitance	4.7 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	48.4 mA @ 120 Hz
Impedance	1.9 Ohms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357729-UHE1H4R7MDD
Ultra Librarian 3D Model	Ultra Librarian UHE1H4R7MDD CAD Model

Description

The 1357729-UHE1H4R7MDD is a radial aluminum electrolytic capacitor from Nichicon's UHE series.

Product: Radial Aluminum Electrolytic Capacitor
Manufacturer: Nichicon
Series: UHE
Capacitance: 4.7 µF
Voltage Rating: 50 V
Application: General Purpose
Temperature Range: -40°C to 105°C
Tolerance: ±20%
Lead Spacing: 0.079" (2.00mm)
Size: 0.197" (5.00mm) Dia
Seated Height: 0.492" (12.50mm)
Lifetime: 5000 hours @ 105°C
Status: Obsolete
