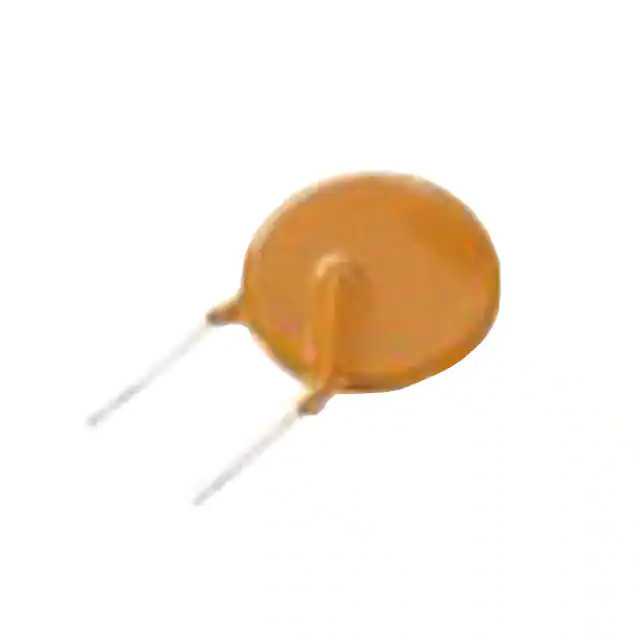

BK60-110-DZ Yageo
Same model may have multiple batches, images only for reference.

BK60-110-DZ

Part No BK60-110-DZ
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description GDT / Polymeric PTC Resettable Fuse 60V 1.1 A Ih Through Hole Radial, Disc
Datasheet
BK60-110-DZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr YAGEO
Series BK60
Package Bulk
Product Status Active
Type Polymeric
Voltage - Max 60V
Current - Hold (Ih) (Max) 1.1 A
Current - Trip (It) 2.2 A
Current - Max 40 A
Time to Trip 8.2 s
Resistance - Initial (Ri) (Min) 150 mOhms
Resistance - Post Trip (R1) (Max) 330 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.472" Dia x 0.122" T (12.00mm x 3.10mm)
Height - Seated (Max) 0.709" (18.00mm)
Thickness (Max) -
Lead Spacing 0.201" (5.10mm)
Approval Agency UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361630-BK60-110-DZ
Ultra Librarian 3D Model Ultra Librarian BK60-110-DZ CAD Model

Description

The YAGEO 1361630-BK60-110-DZ is a polymeric PTC resettable fuse.

  • Temperature Range: -40°C to 85°C
  • Maximum Current: 40A
  • Maximum Voltage: 60V
  • Package Form Factor: Radial, Disc
  • Mounting Type: Through Hole
  • UL Approved: Yes
  • Current Hold (Ih): 1.1A
  • Current Trip (It): 2.2A
  • Time to Trip: 8.2 seconds
  • Initial Resistance (Ri): 150 mOhms
  • Status: Active
