Same model may have multiple batches, images only for reference.

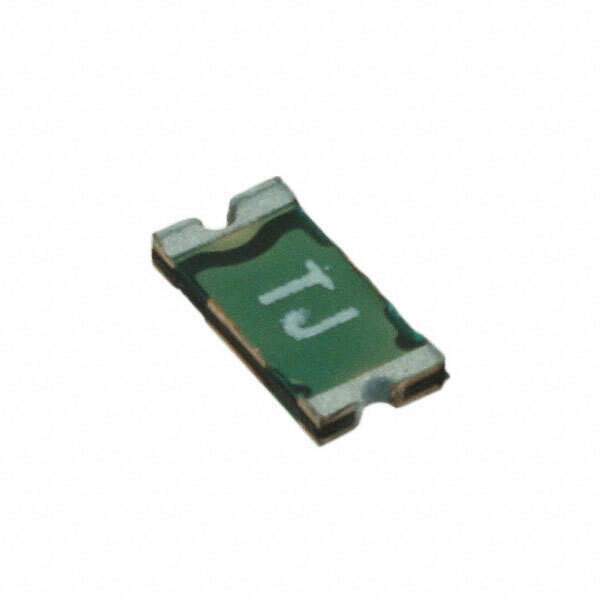

PTS120660V005 Eaton - Electronics Division
Same model may have multiple batches, images only for reference.

PTS120660V005

Part No PTS120660V005
Manufacturer Eaton / Cutler Hammer
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 50MA 1206
Datasheet
PTS120660V005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306528-PTS120660V005
Manufacturer Eaton - Electronics Division
Category Circuit Protection -PTC Resettable Fuses
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Type Polymeric
Voltage - Max 60V
Current - Hold (Ih) (Max) 50 mA
Current - Trip (It) 150 mA
Current - Max 100 A
Time to Trip 1.5 s
Ultra Librarian 3D Model Ultra Librarian PTS120660V005 CAD Model

Description

Product features • Positive Temperature Coefficient (PTC) • SMT resettable fuse • Low resistance • Fast time-to-trip<br /> • Voltage range 6 V to 60 V • Current range from 0.05A to 2.0A • 1206 (3216 metric) compact footprint • Moisture sensitivity level (MSL): 1
