Same model may have multiple batches, images only for reference.

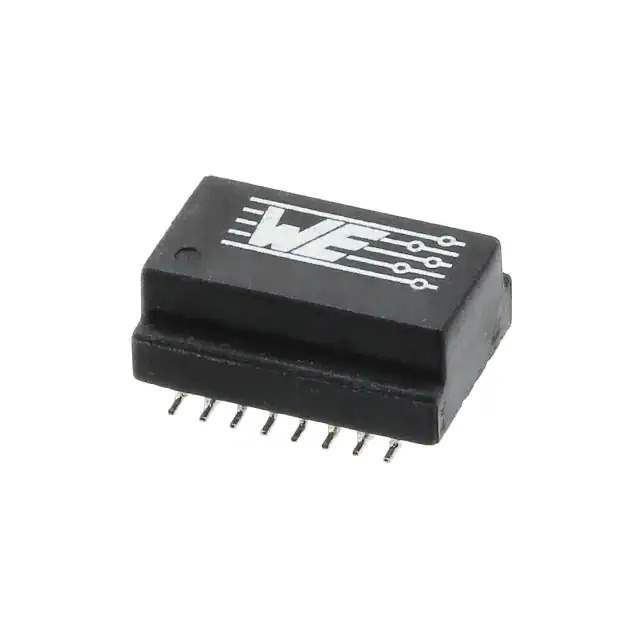

749020111A Real Image
Same model may have multiple batches, images only for reference.

749020111A

Part No 749020111A
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description WE-LAN 10/100/1000 BASE-T SMT TR
Datasheet
749020111A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Wurth Electronics Inc
Series WE-LAN
Package Tape & Reel
Product Status Active
Transformer Type LAN 1000 Base-T
Inductance 350µH
Size / Dimension 0.650" L x 0.354" W (16.50mm x 9.00mm)
Height - Seated (Max) 0.093" (2.35mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 857644-749020111A
Ultra Librarian 3D Model Ultra Librarian 749020111A CAD Model

Description

The WE-LAN series by Wurth Electronics Inc offers a high-quality LAN 1000 Base-T transformer, perfect for use in pulse transformers.

  • Size: 0.650" L x 0.354" W (16.50mm x 9.00mm)
  • Inductance: 350μH
  • Height: 0.093" (2.35mm)
  • Operating Temperature: 0°C to 70°C
  • Package: Tape & reel
  • Standard Package: 1,500 pcs
  • REACH: Compliant
  • ECCN: EAR99
